Process Technology Metal Immersion Heaters - P, F, S, and T Series
Process Technology Metal Immersion Heaters - P, F, S, and T Series
SKU:HEA-ef0b06
Industrial-grade Metal Immersion Heaters with superior chemical resistance, safety features & outstanding performance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Process Technology Metal Immersion Heaters - P, F, S, and T Series
$499.99
Quantity: 1
Claim Your Seller Account
Process Technology Metal Immersion Heaters - P, F, S, and T Series
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

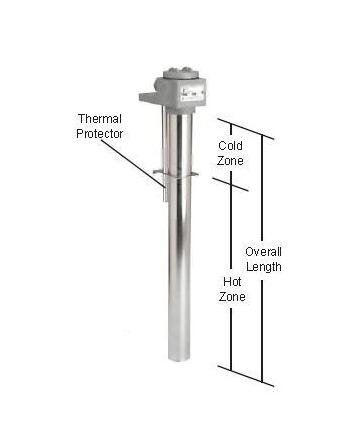

The Process Technology Metal Immersion Heaters - P, F, S, and T Series are designed for industrial applications requiring superior chemical resistance, outstanding performance, and safety features. These heaters feature rugged construction with material options including titanium, steel, and stainless steel. With watt densities up to 35 watts per square inch, they ensure longevity and efficiency. The built-in thermal overload protection, corrosion-resistant head, and certifications like cULus and CE compliance make them ideal for a wide range of solutions.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions, plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: steel, 304 stainless steel, 316 stainless steel, Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,000 watts to 12,000 watts.VOLTAGES: 120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C).P5: for solutions up to 300°F (149°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C).P7: for solutions up to 300°F (149°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.All metal welded junction box.Temperature and level controls sized to match the heater (sold separately).
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Certifications
cUL US Listed
Specifications Hot Zone
16 " | 406 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Overall Length
23 " | 584 mm
Specifications Phase Available
Single (Standard) | Three
Specifications Shipping Weight
12.0 Pound
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Weight
12.0 lbs | 5.4 kg
