Process Technology QM Series Quartz Heaters
Process Technology QM Series Quartz Heaters
SKU:HEA-01d4ff
Experience superior chemical resistance and outstanding performance with Process Technology QM Series Quartz Heaters. Ideal for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Process Technology QM Series Quartz Heaters
$899.99
Quantity: 1
Claim Your Seller Account
Process Technology QM Series Quartz Heaters
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology QM Series Quartz Heaters with Metal Elements offer unmatched chemical resistance, rugged construction, and outstanding performance for industrial applications. With watt densities up to 25 watts per square inch, corrosion-resistant head, and safety features like a grounded internal metal element and built-in thermal protector, these heaters ensure long service life and reliable operation. Available in various wattages and voltages, with options for replaceable or resettable thermal protectors, these heaters are designed for solutions up to 230°F. Ideal for aqueous acidic plating solutions, pickling tanks, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Benefits Features And Benefits

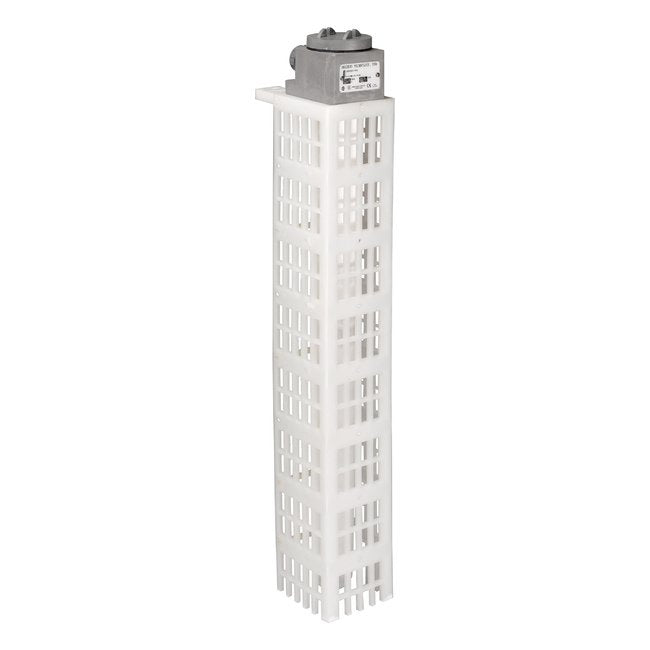

SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous acidic plating solutions and pickling tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection. RUGGED CONTRUCTION: Heavy wall quartz sheath with replaceable metal element and polypropylene guards (complete assembly). OUTSTANDING PERFORMANCE: Watt densities up to 25 watts per square inch (4 w/cm2) ensure long service life. CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit. SAFETY FEATURES: Grounded internal metal element. Thermal protector built in. Replaceable P1 protector standard for solutions up to 180ºF (82ºC). CERTIFICATIONS: cULus listed (less than 4000 watts), and 600 volt CSA only. SIZES:500 watts to 10,000 watts. VOLTAGES: 120 to 600 volts. OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors: P4: for solutions up to 230°F(110°C). Resettable thermal protectors: P2: for solutions up to 180°F(82°C). P6: for solutions up to 230°F(110°C). Special configurations and lengths. Longer wire and conduit lengths. Three phase elements. Fluoropolymer(PTFE) guards for chromic acid or solutions over 180°F(82°C). Lower watt densities for highly viscous solutions. Temperature and level controls sized to match the heater (sold separately).
Note Note
NOTE: Not for use in hydrofluoric acid or alkaline solutions.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C).
Specifications Hot Zone
18 " | 457 mm
Specifications Manufacturer
Process Technology
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single (Standard) | Three
Specifications Quartz Tube Model
QM329J-**
Specifications Shipping Weight
17.0 Pound
Specifications Single Guard Model
QM29G
Specifications Volts
240 V
Specifications Watts
3000 W
Specifications Weight
17.0 lbs | 7.7 kg
