Process Technology QM Series Quartz Heaters with Metal Elements
Process Technology QM Series Quartz Heaters with Metal Elements
SKU:HEA-4f5419
Heavy-duty Process Technology Quartz Heaters with Metal Elements, built for superior chemical resistance and outstanding performance in demanding industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Process Technology QM Series Quartz Heaters with Metal Elements
$899.99
Quantity: 1
Claim Your Seller Account
Process Technology QM Series Quartz Heaters with Metal Elements
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

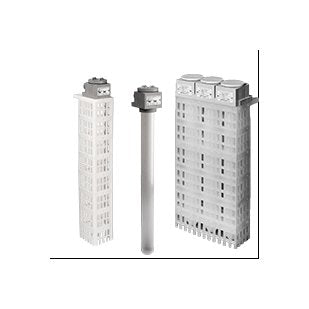

The Process Technology QM Series Quartz Heaters with Metal Elements are designed for superior chemical resistance, boasting heavy wall quartz sheaths with replaceable metal elements and polypropylene guards. These heaters offer outstanding performance with watt densities up to 25 watts per square inch, ensuring long service life. With a corrosion-resistant head, safety features like grounded internal metal elements and thermal protectors, and certifications including cULus listing and CSA approval, they are ideal for aqueous acidic plating solutions and pickling tanks. Explore options like replaceable thermal protectors, resettable protectors, and special configurations for tailored performance.
Product Specifications
Features And Benefits Features And Benefits

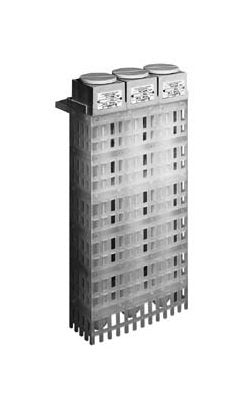

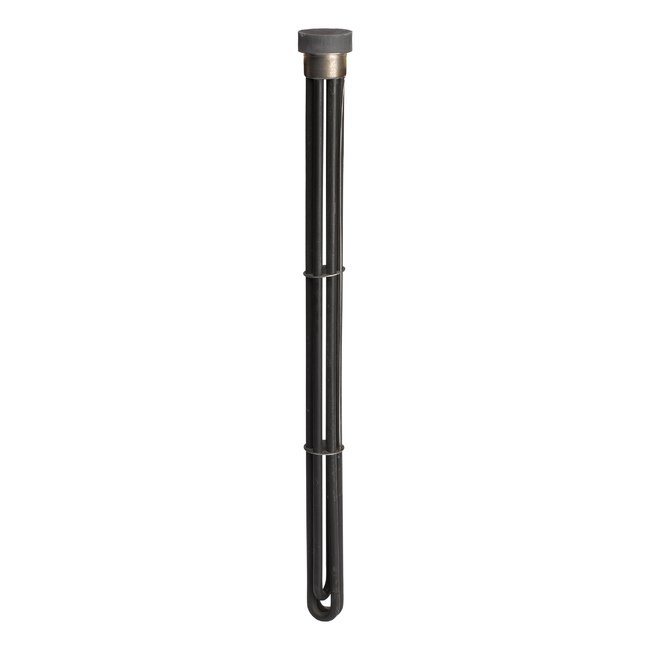

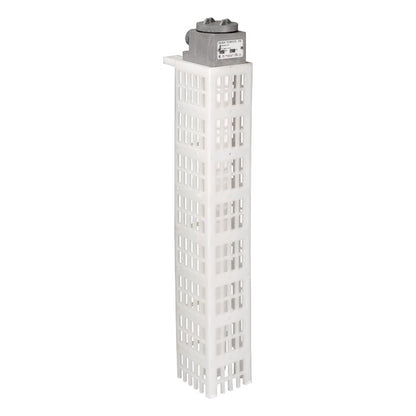

SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous acidic plating solutions and pickling tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection. RUGGED CONTRUCTION: Heavy wall quartz sheath with replaceable metal element and polypropylene guards (complete assembly). OUTSTANDING PERFORMANCE: Watt densities up to 25 watts per square inch (4 w/cm2) ensure long service life. CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit. SAFETY FEATURES: Grounded internal metal element. Thermal protector built in. Replaceable P1 protector standard for solutions up to 180ºF (82ºC). CERTIFICATIONS: cULus listed (less than 4000 watts), and 600 volt CSA only. SIZES:500 watts to 10,000 watts. VOLTAGES: 120 to 600 volts. OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors: P4: for solutions up to 230°F(110°C). Resettable thermal protectors: P2: for solutions up to 180°F(82°C). P6: for solutions up to 230°F(110°C). Special configurations and lengths. Longer wire and conduit lengths. Three phase elements. Fluoropolymer(PTFE) guards for chromic acid or solutions over 180°F(82°C). Lower watt densities for highly viscous solutions. Temperature and level controls sized to match the heater (sold separately).
Note Note
NOTE: Not for use in hydrofluoric acid or alkaline solutions.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C).
Specifications Hot Zone
21 " | 533 mm
Specifications Manufacturer
Process Technology
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single (Standard) | Three
Specifications Quartz Tube Model
QM3.529J-**
Specifications Shipping Weight
17.0 Pound
Specifications Single Guard Model
QM29G
Specifications Volts
240 V
Specifications Watts
3500 W
Specifications Weight
17.0 lbs | 7.7 kg
