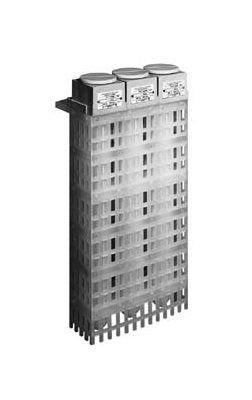

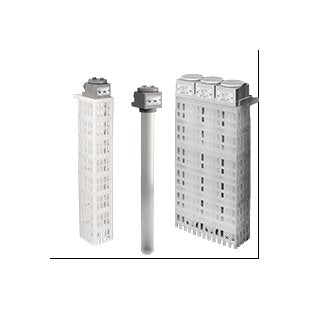

The Process Technology QM Series Quartz Heaters with Metal Elements are designed for superior chemical resistance, making them ideal for aqueous acidic plating solutions and pickling tanks. With rugged construction including heavy wall quartz sheath and replaceable metal elements, these heaters offer outstanding performance with watt densities up to 25 watts per square inch for an extended service life. Safety features like grounded internal metal elements and built-in thermal protectors ensure safe operation. Additionally, these heaters are cULus listed and CSA certified for reliability and compliance with industry standards.
Product Specifications
Features And Benefits Features And Benefits

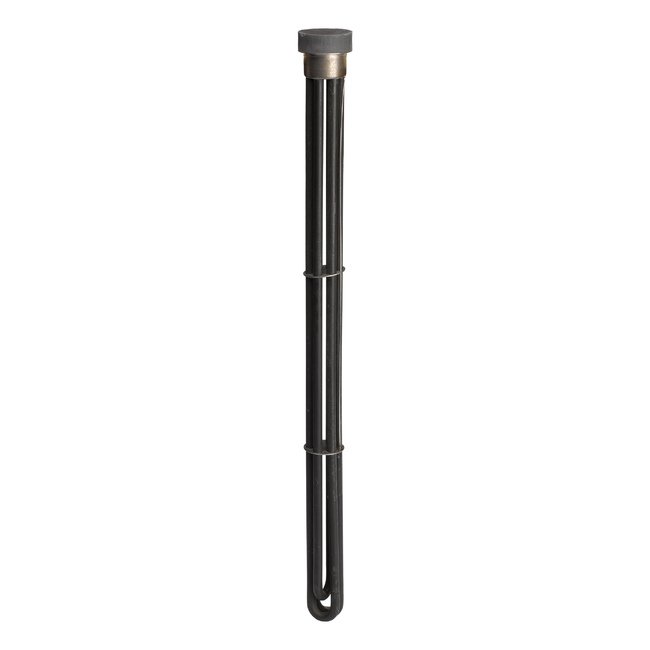

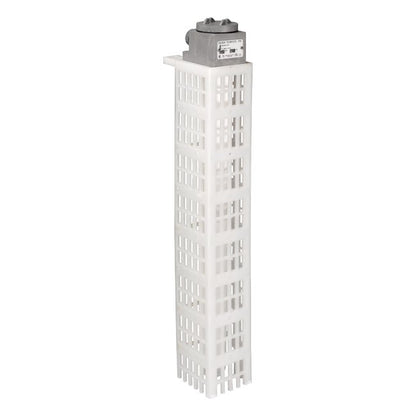

SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous acidic plating solutions and pickling tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection. RUGGED CONTRUCTION: Heavy wall quartz sheath with replaceable metal element and polypropylene guards (complete assembly). OUTSTANDING PERFORMANCE: Watt densities up to 25 watts per square inch (4 w/cm2) ensure long service life. CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit. SAFETY FEATURES: Grounded internal metal element. Thermal protector built in. Replaceable P1 protector standard for solutions up to 180ºF (82ºC). CERTIFICATIONS: cULus listed (less than 4000 watts), and 600 volt CSA only. SIZES:500 watts to 10,000 watts. VOLTAGES: 120 to 600 volts. OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors: P4: for solutions up to 230°F(110°C). Resettable thermal protectors: P2: for solutions up to 180°F(82°C). P6: for solutions up to 230°F(110°C). Special configurations and lengths. Longer wire and conduit lengths. Three phase elements. Fluoropolymer(PTFE) guards for chromic acid or solutions over 180°F(82°C). Lower watt densities for highly viscous solutions. Temperature and level controls sized to match the heater (sold separately).
Note Note
NOTE: Not for use in hydrofluoric acid or alkaline solutions.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C).
Specifications Hot Zone
12 " | 305 mm
Specifications Manufacturer
Process Technology
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single (Standard) | Three
Specifications Quartz Tube Model
QM217J-**
Specifications Shipping Weight
11.0 Pound
Specifications Single Guard Model
QM17G
Specifications Volts
480 V
Specifications Watts
2000 W
Specifications Weight
11.0 lbs | 5.0 kg
