Process Technology SP Series Serpentine Coils
Process Technology SP Series Serpentine Coils
SKU:HEA-314546
Explore Process Technology SP Series Serpentine Coils for superior chemical resistance & efficient heat exchange in space-limited installations.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Process Technology SP Series Serpentine Coils
$799.99
Quantity: 1
Claim Your Seller Account
Process Technology SP Series Serpentine Coils
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

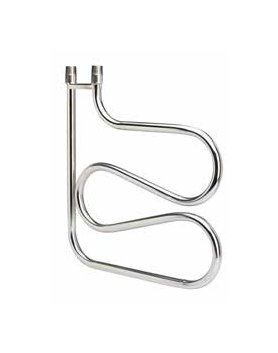

The Process Technology SP Series Serpentine Coils are designed for superior chemical resistance, featuring a wide range of materials suitable for heating or cooling applications in various chemical environments. With options like Zirconium and Hastelloy C coils, these coils offer outstanding performance with a low-profile design, ideal for installations in space-restricted tanks. Each coil boasts a rugged construction with heavy-wall metal tubing in steel, 316 stainless steel, or titanium, ensuring leak-free operation and efficient heat exchange. These coils provide an active exchange area on every inch of its surface, offering a cost-effective solution for different pass configurations and exchange area requirements.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline solutions, acid solutions, and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material. RUGGED CONSTRUCTION: Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel and titanium. OUTSTANDING PERFORMANCE: Low profile design for installation in tanks with limited space. Offers low cost for heating surface area. Every inch of coil surface is active exchange area. LEAK-FREE OPERATION: Single point connections reduce thepotential for leaks and simplifies installation. SIZES: 2.6 square ft. to 10 square ft. of exchange area standard for 4-pass and 6-pass designs. OPTIONS AVAILABLE (consult factory): Mounting hangers. Special sizes in 2, 8 or 10-pass configurations. Heavier gauge tubing. Other riser lengths and configurations. Zirconium, Hastelloy C and other alloys available. Fluoropolymer coatings for protection at solution/atmospheric interface. Non-conductive isolator couplings. L-shaped configurations for bottom heat applications. High pressure ratings available (consult factory).
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 "

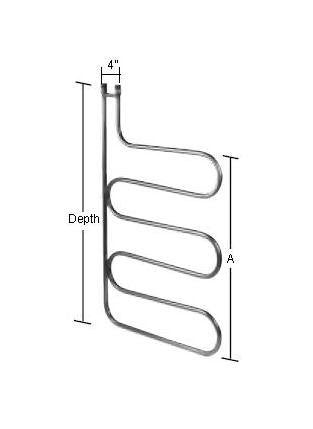

Specifications Depth
36 " | 914 mm
Specifications Exchange Area
4.6 ft²
Specifications Inlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT
Specifications Length
48 " | 1219 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Miscellaneous
-LP = low profile
Specifications Number Of Passes
4
Specifications Outlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT

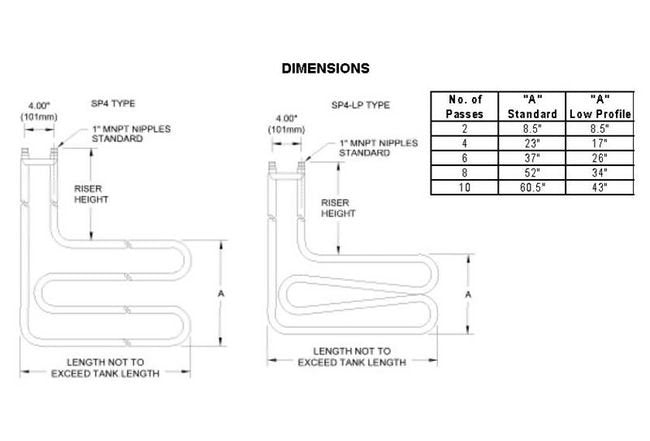

Specifications Riser Height
-BR = bottom style coil, specify riser height | -R = specify custom riser height
Specifications Shipping Weight
14.0 Pound
Specifications Weight
14.0 lbs | 6.4 kg
