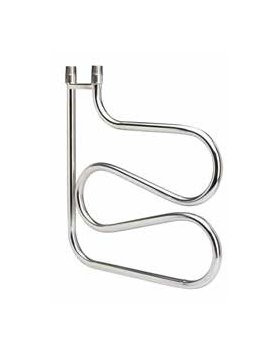

The Process Technology SP Series Serpentine Coils feature 316 stainless steel construction, offering superior chemical resistance for heating or cooling alkaline, acid solutions & rinse tanks. With a heavy-wall design in steel, stainless steel, or titanium, these coils provide outstanding performance in confined spaces, ensuring efficient heat transfer. Designed for leak-free operation with single point connections, they offer a cost-effective solution with active exchange area on every inch of the surface. Options include mounting hangers, special configurations, and various materials like Zirconium & Hastelloy C.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline solutions, acid solutions, and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material. RUGGED CONSTRUCTION: Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel and titanium. OUTSTANDING PERFORMANCE: Low profile design for installation in tanks with limited space. Offers low cost for heating surface area. Every inch of coil surface is active exchange area. LEAK-FREE OPERATION: Single point connections reduce thepotential for leaks and simplifies installation. SIZES: 2.6 square ft. to 10 square ft. of exchange area standard for 4-pass and 6-pass designs. OPTIONS AVAILABLE (consult factory): Mounting hangers. Special sizes in 2, 8 or 10-pass configurations. Heavier gauge tubing. Other riser lengths and configurations. Zirconium, Hastelloy C and other alloys available. Fluoropolymer coatings for protection at solution/atmospheric interface. Non-conductive isolator couplings. L-shaped configurations for bottom heat applications. High pressure ratings available (consult factory).

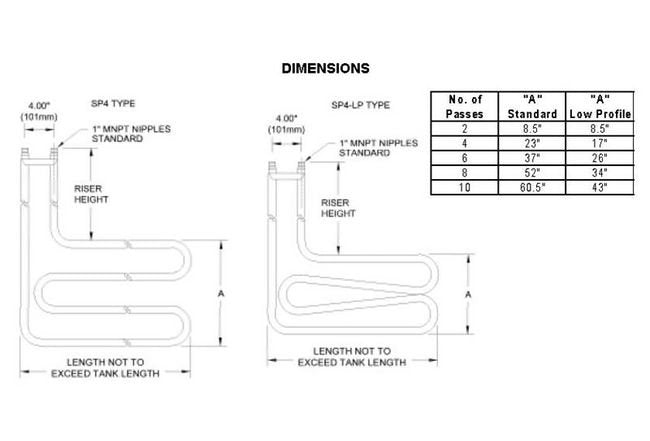

Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 "

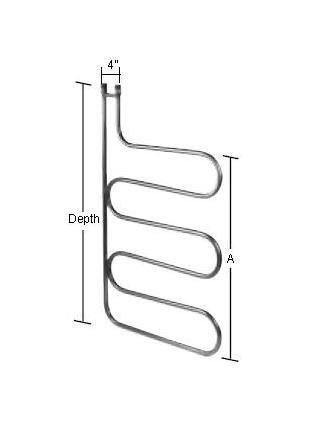

Specifications Depth
36 " | 914 mm
Specifications Exchange Area
2.6 ft²
Specifications Inlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT
Specifications Length
24 " | 610 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Miscellaneous
-LP = low profile
Specifications Number Of Passes
4
Specifications Outlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT
Specifications Riser Height
-BR = bottom style coil, specify riser height | -R = specify custom riser height
Specifications Shipping Weight
10.0 Pound
Specifications Weight
10.0 lbs | 4.5 kg
