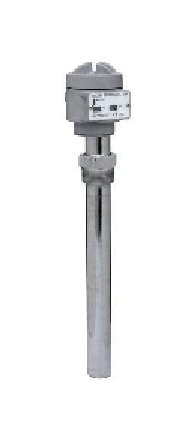

Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater

Name: Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater
Brand: Metafin Supply Company
SKU: HEA-86755a
Price: 319.99 USD
Availability: OutOfStock

SKU:HEA-86755a

Experience superior chemical resistance with the Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater. Certified for safety and performance.

$319.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater is expertly designed for superior chemical resistance in aqueous alkaline solutions. Featuring a heavy-wall metal sheath in 304 Stainless Steel, this heater ensures outstanding performance with watt densities of up to 40 watts per square inch. Safety is paramount with grounded construction and a built-in thermal protector. With certifications including cULus and CE compliance, this heater offers options for special configurations, explosion resistance, and more, making it ideal for industrial applications.

Product Specifications

Features And Benefits Features And Benefits

SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: 304 stainless steel, 316 stainless steel and Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 40 watts per square inch (6.2 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in.CERTIFICATIONS: cULus listed (except steel) and CE compliant.SIZES: 500 watts to 2,000 watts.VOLTAGES: 120 to 240 volts.OPTIONS AVAILABLESpecial configurations and lengths.Explosion resistant enclosures.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).

Specifications Certifications

cUL US Listed

Specifications Manufacturer

Process Technology

Specifications Material

304 Stainless Steel

Specifications Overall Length

14 " | 356 mm

Specifications Phase

Single

Specifications Shipping Weight

14.0 Pound

Specifications Volts

120 V

Specifications Watts

1500 W

Specifications Weight

14.0 lbs | 6.4 kg

Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater
