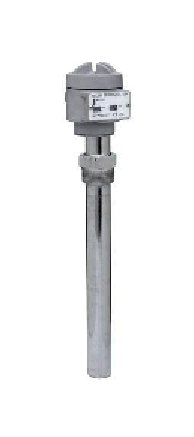

Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater

Name: Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater
Brand: Metafin Supply Company
SKU: HEA-5b9b1c
Price: 249.99 USD
Availability: OutOfStock

SKU:HEA-5b9b1c

High-performance 2000W 120V small tank screw plug heater with 316 Stainless Steel construction and cUL US certification.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater is crafted from durable 316 Stainless Steel, delivering 2000W at 120V for superior performance. With an overall length of 17" and weighing 17.0 lbs, this heater boasts exceptional chemical resistance, heavy-duty construction, and watt densities up to 40 watts per square inch. Designed with safety in mind, it features a corrosion-resistant head, grounded construction, and a built-in thermal protector. Certified by cUL US, this heater offers sizes ranging from 500 watts to 2,000 watts, catering to diverse voltage requirements and optional configurations for various solutions.

Product Specifications

Features And Benefits Features And Benefits

SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: 304 stainless steel, 316 stainless steel and Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 40 watts per square inch (6.2 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in.CERTIFICATIONS: cULus listed (except steel) and CE compliant.SIZES: 500 watts to 2,000 watts.VOLTAGES: 120 to 240 volts.OPTIONS AVAILABLESpecial configurations and lengths.Explosion resistant enclosures.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).

Specifications Certifications

cUL US Listed

Specifications Manufacturer

Process Technology

Specifications Material

316 Stainless Steel

Specifications Overall Length

17 " | 432 mm

Specifications Phase

Single

Specifications Shipping Weight

17.0 Pound

Specifications Volts

120 V

Specifications Watts

2000 W

Specifications Weight

17.0 lbs | 7.7 kg

Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater
