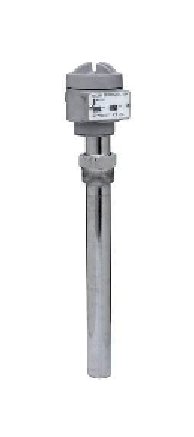

Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater, 316 Stainless Steel, 500W, 120V

Name: Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater, 316 Stainless Steel, 500W, 120V
Brand: Metafin Supply Company
SKU: HEA-7a0907
Price: 249.99 USD
Availability: OutOfStock

SKU:HEA-7a0907

The Process Technology TB Series 1-1/4" Heater: Superior chemical resistance, rugged construction, cULus listed, customizable options.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater is a robust immersion heater designed for superior chemical resistance in aqueous alkaline solutions and plating tanks. Constructed with 316 stainless steel, this heater boasts outstanding performance with watt densities up to 40 watts per square inch, ensuring longevity. Safety features include a corrosion-resistant head with a thermal protector built-in and grounded construction. Certified with cULus and CE compliant, this heater offers customization options for special configurations, lengths, and explosion-resistant enclosures.

Product Specifications

Features And Benefits Features And Benefits

SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: 304 stainless steel, 316 stainless steel and Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 40 watts per square inch (6.2 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in.CERTIFICATIONS: cULus listed (except steel) and CE compliant.SIZES: 500 watts to 2,000 watts.VOLTAGES: 120 to 240 volts.OPTIONS AVAILABLESpecial configurations and lengths.Explosion resistant enclosures.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).

Specifications Certifications

cUL US Listed

Specifications Manufacturer

Process Technology

Specifications Material

316 Stainless Steel

Specifications Overall Length

8 " | 203 mm

Specifications Phase

Single

Specifications Shipping Weight

8.0 Pound

Specifications Volts

120 V

Specifications Watts

500 W

Specifications Weight

8.0 lbs | 3.6 kg

Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater, 316 Stainless Steel, 500W, 120V
