Process Technology Triple Metal Heaters - 3 Series
Process Technology Triple Metal Heaters - 3 Series
SKU:HEA-21fb6a
Rugged Process Technology Triple Metal Heaters for superior performance and chemical resistance. Multiple sizes & voltages available.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Process Technology Triple Metal Heaters - 3 Series
$1,299.99
Quantity: 1
Claim Your Seller Account
Process Technology Triple Metal Heaters - 3 Series
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

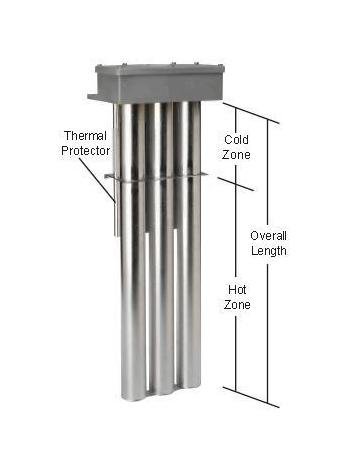

The Process Technology Triple Metal Heaters in the 3 Series are designed for superior chemical resistance in aqueous alkaline solutions, plating, and phosphate tanks. With rugged construction featuring heavy wall metal sheaths in various materials, these heaters offer outstanding performance with watt densities up to 35 watts per square inch. Safety features include a corrosion-resistant head, grounded construction, and thermal protectors, ensuring cULus listing and CE compliance. Available in a wide range of sizes and voltages, with options for various thermal protectors and special configurations, these heaters provide reliability and longevity in demanding industrial settings.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chartwith your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) andCE compliant (except 600 volts).SIZES: 3,000 watts to 36,000 watts.VOLTAGES:200 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5: for solutions up to 300°F (149°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed
Specifications Hot Zone
44 " | 1118 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
54 " | 1372 mm
Specifications Phase
Single | Three
Specifications Volts
480 V
Specifications Watts
27000 W
Specifications Weight
69.0 lbs | 31.3 kg
