Process Technology UC Series U Coils
Process Technology UC Series U Coils
SKU:HEA-ee97a0
Premium UC Series U Coils for superior chemical resistance and efficient heating/cooling. Ideal for small tanks, high performance guaranteed.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Process Technology UC Series U Coils
$299.99
Quantity: 1
Claim Your Seller Account
Process Technology UC Series U Coils
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

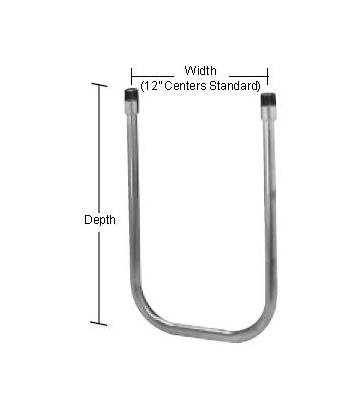

The Process Technology UC Series U Coils offer superior chemical resistance and outstanding performance for heating or cooling applications. With a heavy wall construction in 316 stainless steel and various tubing sizes available, these coils ensure leak-free operation with high-pressure ratings. Ideal for small tanks, these coils provide excellent heat exchange efficiency and come in different exchange area sizes to meet varying needs. Options for special configurations, materials, and coatings make these coils versatile and reliable for a wide range of applications.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline or acid solutions and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material.RUGGED CONSTRUCTION:Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel, and titanium.1â diameter tubing.1â MNPT fittings standard.OUTSTANDING PERFORMANCE: One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.LEAK-FREE OPERATION: Single point connections reduce the potential for leaks and simplifies installation. One-inch MNPT connections standard.HIGH PRESSURE RATING: 100 PSI working pressure (steam or water).SIZES: .75 square ft. to 2.5 square ft. of exchange area standard.OPTIONS AVAILABLE (consult factory):Special configurations and lengths.Heavier gauge tubing.Zirconium, Hastelloy C® and other alloys available.Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.Non-conductive isolator couplings.L-shaped configurations for bottom heat applications.Higher pressure ratings available.Hastelloy C® is a registered trademark of Haynes International, Inc.
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 " | 1-1/4 "
Specifications Depth
54 " | 1372 mm
Specifications Exchange Area
2.25 ft²
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Shipping Weight
9.0 Pound
Specifications Weight
9.0 lbs | 4.1 kg

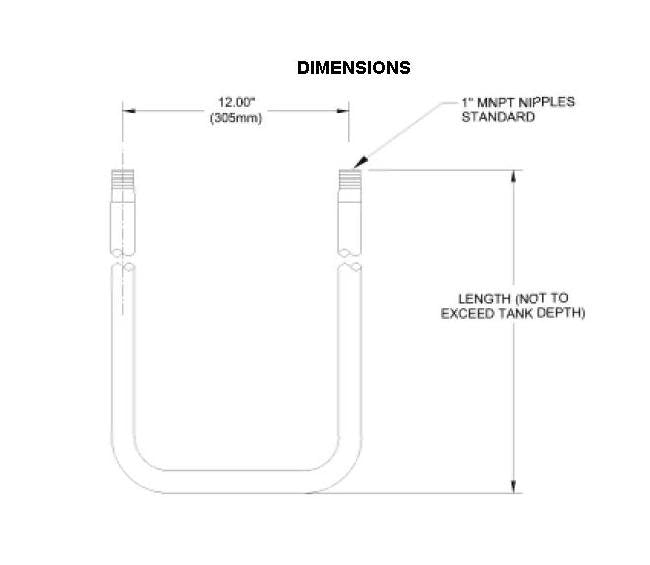

Specifications Width
12 " | 305 mm
