Process Technology UC Series U Coils
Process Technology UC Series U Coils
SKU:HEA-49f248
Experience superior performance with Process Technology UC Series U Coils, designed for optimal heat exchange in diverse applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Process Technology UC Series U Coils
$349.99
Quantity: 1
Claim Your Seller Account
Process Technology UC Series U Coils
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

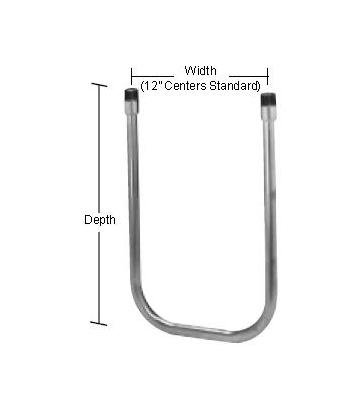

The Process Technology UC Series U Coils are expertly designed for superior performance in heating or cooling applications. Crafted from 316 Stainless Steel, these coils offer exceptional chemical resistance, making them ideal for alkaline or acidic solutions and rinse tanks. The rugged construction with heavy-wall, 18-gauge metal tubing ensures durability and efficiency. Featuring leak-free operation with single-point connections and a 1-inch diameter tubing, these coils provide outstanding heat exchange in small tanks with low requirements. With a 100 PSI working pressure, these coils guarantee reliability and efficiency for various institutional and government heating or cooling needs.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline or acid solutions and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material.RUGGED CONSTRUCTION:Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel, and titanium.1â diameter tubing.1â MNPT fittings standard.OUTSTANDING PERFORMANCE: One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.LEAK-FREE OPERATION: Single point connections reduce the potential for leaks and simplifies installation. One-inch MNPT connections standard.HIGH PRESSURE RATING: 100 PSI working pressure (steam or water).SIZES: .75 square ft. to 2.5 square ft. of exchange area standard.OPTIONS AVAILABLE (consult factory):Special configurations and lengths.Heavier gauge tubing.Zirconium, Hastelloy C® and other alloys available.Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.Non-conductive isolator couplings.L-shaped configurations for bottom heat applications.Higher pressure ratings available.Hastelloy C® is a registered trademark of Haynes International, Inc.
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 " | 1-1/4 "
Specifications Depth
24 " | 610 mm
Specifications Exchange Area
1.00 ft²
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Shipping Weight
4.0 Pound
Specifications Weight
4.0 lbs | 1.8 kg

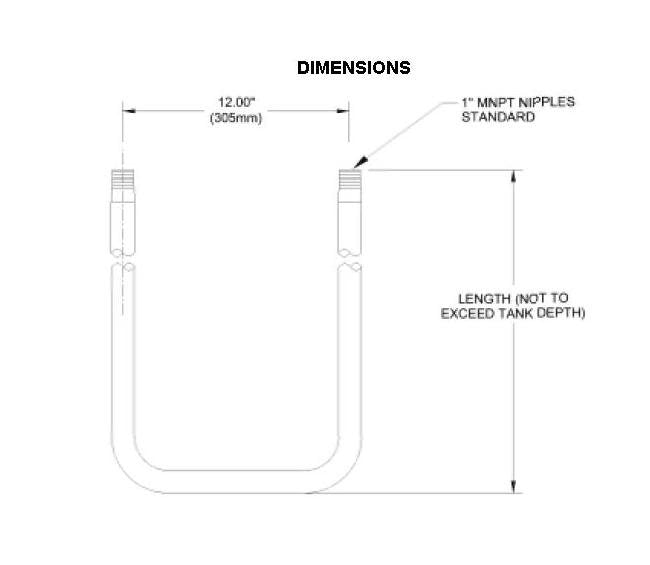

Specifications Width
12 " | 305 mm
