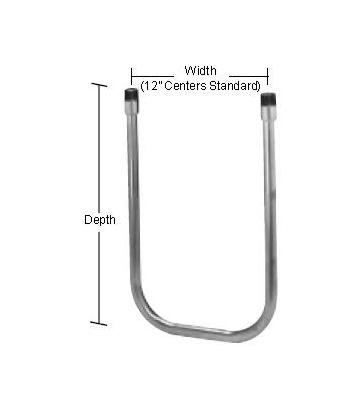

Process Technology UC Series U Coils, 316 Stainless Steel 1" Coils
Process Technology UC Series U Coils, 316 Stainless Steel 1" Coils
SKU:HEA-93cbb5
High-performance UC Series U Coils for precise heating/cooling with superior chemical resistance and leak-free operation.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Process Technology UC Series U Coils, 316 Stainless Steel 1" Coils
$289.99
Quantity: 1
Claim Your Seller Account
Process Technology UC Series U Coils, 316 Stainless Steel 1" Coils
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology UC Series U Coils offer superior chemical resistance for heating or cooling applications with alkaline or acid solutions. Constructed with heavy wall 316 stainless steel tubing, these coils provide outstanding performance with a low profile design, maximizing active exchange area. Leak-free operation is ensured with single point connections and high-pressure rating. Various options are available including special configurations, Zirconium, Hastelloy C®, and Fluoropolymer coatings for corrosion protection. Ideal for small tanks with low heat exchange requirements.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline or acid solutions and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material.RUGGED CONSTRUCTION:Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel, and titanium.1â diameter tubing.1â MNPT fittings standard.OUTSTANDING PERFORMANCE: One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.LEAK-FREE OPERATION: Single point connections reduce the potential for leaks and simplifies installation. One-inch MNPT connections standard.HIGH PRESSURE RATING: 100 PSI working pressure (steam or water).SIZES: .75 square ft. to 2.5 square ft. of exchange area standard.OPTIONS AVAILABLE (consult factory):Special configurations and lengths.Heavier gauge tubing.Zirconium, Hastelloy C® and other alloys available.Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.Non-conductive isolator couplings.L-shaped configurations for bottom heat applications.Higher pressure ratings available.Hastelloy C® is a registered trademark of Haynes International, Inc.
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 " | 1-1/4 "
Specifications Depth
60 " | 1524 mm
Specifications Exchange Area
2.5 ft²
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Shipping Weight
10.0 Pound
Specifications Weight
10.0 lbs | 4.5 kg

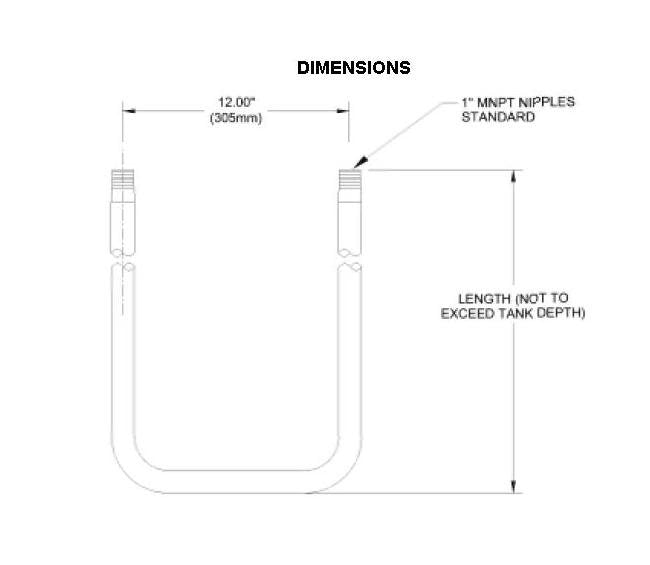

Specifications Width
12 " | 305 mm
