ProcessTech U Coils - Titanium 1" Diameter
ProcessTech U Coils - Titanium 1" Diameter
SKU:HEA-fc477f
Premium titanium U coils for efficient heating/cooling. Heavy-duty build, leak-free, high pressure resistant. Ideal for small tanks.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
ProcessTech U Coils - Titanium 1" Diameter
$199.99
Quantity: 1
Claim Your Seller Account
ProcessTech U Coils - Titanium 1" Diameter
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

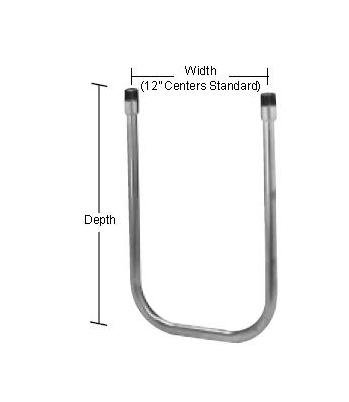

The ProcessTech UC Series U Coils offer superior chemical resistance, rugged construction, and outstanding performance for heating or cooling applications. Featuring heavy wall, 18-gauge titanium tubing with leak-free operation and high pressure resistance. With options for special configurations, lengths, and various materials, these coils are ideal for small tanks with low heat exchange requirements.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline or acid solutions and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material.RUGGED CONSTRUCTION:Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel, and titanium.1â diameter tubing.1â MNPT fittings standard.OUTSTANDING PERFORMANCE: One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.LEAK-FREE OPERATION: Single point connections reduce the potential for leaks and simplifies installation. One-inch MNPT connections standard.HIGH PRESSURE RATING: 100 PSI working pressure (steam or water).SIZES: .75 square ft. to 2.5 square ft. of exchange area standard.OPTIONS AVAILABLE (consult factory):Special configurations and lengths.Heavier gauge tubing.Zirconium, Hastelloy C® and other alloys available.Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.Non-conductive isolator couplings.L-shaped configurations for bottom heat applications.Higher pressure ratings available.Hastelloy C® is a registered trademark of Haynes International, Inc.
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 " | 1-1/4 "
Specifications Depth
18 " | 457 mm
Specifications Exchange Area
0.75 ft²
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Shipping Weight
3.0 Pound
Specifications Weight
3.0 lbs | 1.4 kg

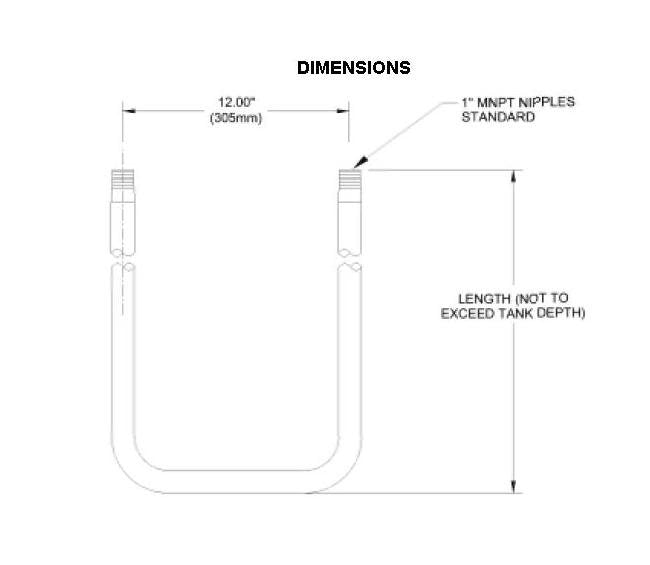

Specifications Width
12 " | 305 mm
