ProDec DSL Series Low Profile Floor Scale
ProDec DSL Series Low Profile Floor Scale
SKU:FLO-ba4fca
The ProDec DSL Series Low Profile Floor Scale - Durable, Legal-for-Trade, and Precise for Various Industries
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
ProDec DSL Series Low Profile Floor Scale
$2,899.99
Quantity: 1
Claim Your Seller Account
ProDec DSL Series Low Profile Floor Scale
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

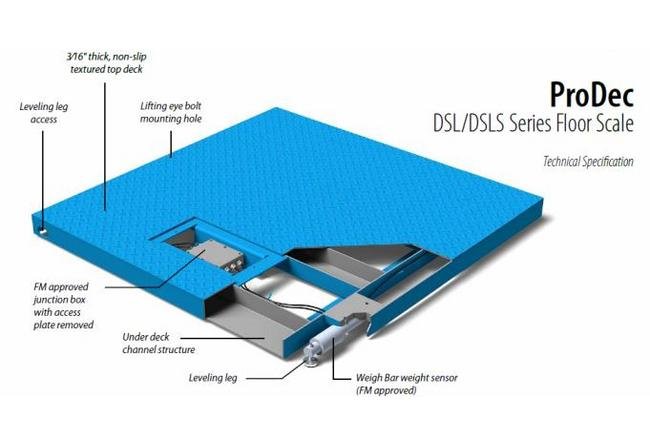

The ProDec DSL Series Low Profile Floor Scale is a rugged and reliable weighing solution designed to meet the demands of various industries. Featuring a Four-Way Deck Access for convenient use, this Legal-for-Trade floor scale is compliant with CoC 90-132, Class III, 5000 Divisions standards. It includes a high-grade powder paint finish, safety tread plate deck, built-in easy top access, and a gasketed junction box for added durability. With 4 Avery Weigh-Tronix Weigh Bars, this scale ensures accurate and precise measurements across a wide range of capacities. Specify dimensions, interface cable connection, and additional accessories to tailor it to your specific needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Options Accessories
[15923-0325] - Platform lifting eye (must be requested at time of order) On all decks with a width dimension of less than 60", two (2) lifting eyes may be ordered at no additional charge. Decks with a width dimension of 60" or more may be ordered with four (4) lifting eyes at no additional charge. | [27874-0022] - Bolt down floor plate (5,000 lb) | [27877-0011-MTS] - Straight ramp attachment bracket (5,000 lb) | [27999-0022] - Bolt down floor plate (10,000 lb) | [28000-0019] - Straight ramp attachment bracket (10,000 lb) | [49022-0027] - Bolt down floor plate (20,000 lb) | [49025-0016] - Straight ramp attachment bracket (20,000 lb)
Options Options
AWT05-507868 -Forklift Frame - DSL 48" x 48" - 5,000 lb / 10,000 lb w/ indicator column. Mild Steel
Specifications Capacity
10,000 to 20,000 lb | 5,000 to 10,000 kg
Specifications Height
5 in | 12.7 cm
Specifications Length
84 in
Specifications Model Number
DSL8460-20
Specifications Notes
20,000 lb decks may be legally installed as a 10,000 lb capacity scale with 2 lb increments. When used as a 10,000 lb scale, 20,000 lb ramps, pit frames and accessories are required.When removing existing junction box from scale, add charge for extra cable length to each weight sensor
Specifications Ramps
27885-0011, 36" Ramp, 5000 lb Capacity | 27885-0029, 48" Ramp, 5000 lb Capacity | 27885-0037, 60" Ramp, 5000 lb Capacity | 27885-0045, 72" Ramp, 5000 lb Capacity | 27885-0060, 96" Ramp, 5000 lb Capacity | 27885-0078, 30" Ramp, 5000 lb Capacity | 27988-0017, 48" Ramp, 10000 lb Capacity | 27988-0041, 84" Ramp, 10000 lb Capacity | 27988-0058, 96" Ramp, 10000 lb Capacity | 27998-0025, 60" Ramp, 10000 lb Capacity | 27998-0033, 72" Ramp, 10000 lb Capacity | 48419-0012, 30" Ramp, 5000 lb Capacity | 48419-0020, 36" Ramp, 5000 lb Capacity | 48419-0038, 48" Ramp, 5000 lb Capacity | 48419-0046, 60" Ramp, 5000 lb Capacity | 48419-0053, 72" Ramp, 5000 lb Capacity | 48419-0079, 96" Ramp, 5000 lb Capacity | 49042-0023, 60" Ramp, 20000 lb Capacity | 49042-0031, 72" Ramp, 20000 lb Capacity | 49042-0049, 84" Ramp, 20000 lb Capacity | 49042-0056, 96" Ramp, 20000 lb Capacity
Specifications Shipping Weight
1,140 lb | 517.1 kg
Specifications Width
60 in
