ProDec DSL Series Low Profile Floor Scale
ProDec DSL Series Low Profile Floor Scale
SKU:FLO-cd0ce2
Highly accurate ProDec DSL Series Low Profile Floor Scale with Legal-for-Trade certification, ensuring precision and reliability for diverse applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
ProDec DSL Series Low Profile Floor Scale
$1,899.99
Quantity: 1
Claim Your Seller Account
ProDec DSL Series Low Profile Floor Scale
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

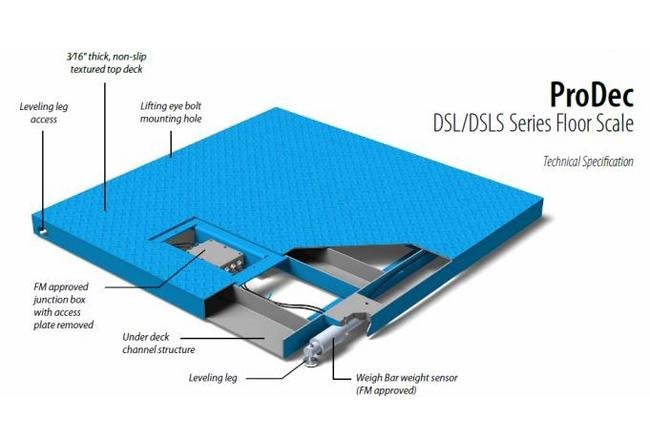

The ProDec DSL Series Low Profile Floor Scale offers unparalleled precision and reliability for a wide range of applications. Designed with four-way deck access and a high-grade powder paint finish, this Legal-for-Trade scale meets CoC 90-132, Class III standards with 5000 divisions. The set includes safety tread plate deck, weight sensors with gasketed junction box, and 25' interface cable. Equipped with 4 Avery Weigh-Tronix Weigh Bars®, this scale allows accurate achievement of diverse legal-for-trade capacities. Customizable with options for dimensions, interface cable connection, ramps, and accessories, the ProDec DSL Series ensures seamless integration and exceptional performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Options Accessories
[15923-0325] - Platform lifting eye (must be requested at time of order) On all decks with a width dimension of less than 60", two (2) lifting eyes may be ordered at no additional charge. Decks with a width dimension of 60" or more may be ordered with four (4) lifting eyes at no additional charge. | [27874-0022] - Bolt down floor plate (5,000 lb) | [27877-0011-MTS] - Straight ramp attachment bracket (5,000 lb) | [27999-0022] - Bolt down floor plate (10,000 lb) | [28000-0019] - Straight ramp attachment bracket (10,000 lb) | [49022-0027] - Bolt down floor plate (20,000 lb) | [49025-0016] - Straight ramp attachment bracket (20,000 lb)
Options Options
AWT05-507868 -Forklift Frame - DSL 48" x 48" - 5,000 lb / 10,000 lb w/ indicator column. Mild Steel
Specifications Capacity
5,000 to 10,000 lb | 2,500 to 5,000 kg
Specifications Height
4.06 in | 10.3 cm
Specifications Length
48 in
Specifications Model Number
DSL4848-10
Specifications Notes
10,000 lb decks may be legally installed as a 5,000 lb capacity scale with 1 lb increments. When used as a 5,000 lb scale, 10,000 lb ramps, pit frames and accessories are required.When removing existing junction box from scale, add charge for extra cable length to each weight sensor
Specifications Ramps
27885-0011, 36" Ramp, 5000 lb Capacity | 27885-0029, 48" Ramp, 5000 lb Capacity | 27885-0037, 60" Ramp, 5000 lb Capacity | 27885-0045, 72" Ramp, 5000 lb Capacity | 27885-0060, 96" Ramp, 5000 lb Capacity | 27885-0078, 30" Ramp, 5000 lb Capacity | 27988-0017, 48" Ramp, 10000 lb Capacity | 27988-0041, 84" Ramp, 10000 lb Capacity | 27988-0058, 96" Ramp, 10000 lb Capacity | 27998-0025, 60" Ramp, 10000 lb Capacity | 27998-0033, 72" Ramp, 10000 lb Capacity | 48419-0012, 30" Ramp, 5000 lb Capacity | 48419-0020, 36" Ramp, 5000 lb Capacity | 48419-0038, 48" Ramp, 5000 lb Capacity | 48419-0046, 60" Ramp, 5000 lb Capacity | 48419-0053, 72" Ramp, 5000 lb Capacity | 48419-0079, 96" Ramp, 5000 lb Capacity | 49042-0023, 60" Ramp, 20000 lb Capacity | 49042-0031, 72" Ramp, 20000 lb Capacity | 49042-0049, 84" Ramp, 20000 lb Capacity | 49042-0056, 96" Ramp, 20000 lb Capacity
Specifications Shipping Weight
491 lb | 223 kg
Specifications Width
48 in
