ProDec DSL Series Low Profile Floor Scale - Legal for Trade Certified
ProDec DSL Series Low Profile Floor Scale - Legal for Trade Certified
SKU:FLO-c01cd6
Accurate and reliable ProDec DSL Series Low Profile Floor Scale for industrial use, Legal-for-Trade certified.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
ProDec DSL Series Low Profile Floor Scale - Legal for Trade Certified
$2,899.99
Quantity: 1
Claim Your Seller Account
ProDec DSL Series Low Profile Floor Scale - Legal for Trade Certified
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

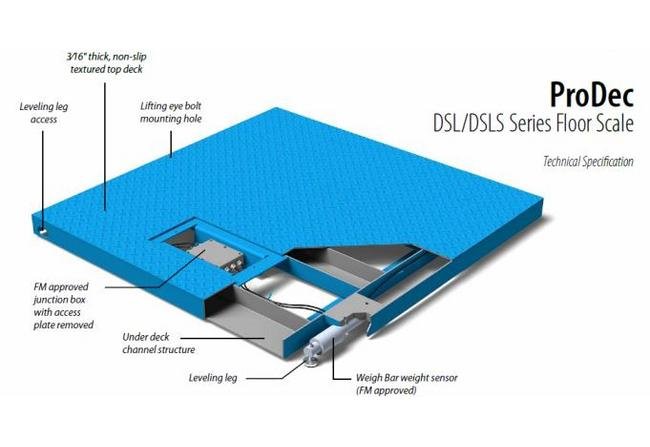

The ProDec DSL Series Low Profile Floor Scale is designed for accurate and reliable weight measurements in industrial settings. With a Four-Way Deck Access and Legal-for-Trade certification (CoC 90-132, Class III, 5000 Divisions), this scale ensures compliance with stringent regulations. It features a high-grade powder paint finish safety tread plate deck, weight sensors, easy top access, gasketed junction box, and 4 Avery Weigh-Tronix Weigh Bars® for precise readings. Customize your order based on dimensions, interface cable connection, ramps, and accessories to meet your specific needs.
Product Specifications
Options Accessories
[15923-0325] - Platform lifting eye (must be requested at time of order) On all decks with a width dimension of less than 60", two (2) lifting eyes may be ordered at no additional charge. Decks with a width dimension of 60" or more may be ordered with four (4) lifting eyes at no additional charge. | [27874-0022] - Bolt down floor plate (5,000 lb) | [27877-0011-MTS] - Straight ramp attachment bracket (5,000 lb) | [27999-0022] - Bolt down floor plate (10,000 lb) | [28000-0019] - Straight ramp attachment bracket (10,000 lb) | [49022-0027] - Bolt down floor plate (20,000 lb) | [49025-0016] - Straight ramp attachment bracket (20,000 lb)
Options Options
AWT05-507868 -Forklift Frame - DSL 48" x 48" - 5,000 lb / 10,000 lb w/ indicator column. Mild Steel
Specifications Capacity
10,000 to 20,000 lb | 5,000 to 10,000 kg
Specifications Height
5 in | 12.7 cm
Specifications Length
96 in
Specifications Model Number
DSL9672-20
Specifications Notes
20,000 lb decks may be legally installed as a 10,000 lb capacity scale with 2 lb increments. When used as a 10,000 lb scale, 20,000 lb ramps, pit frames and accessories are required.When removing existing junction box from scale, add charge for extra cable length to each weight sensor
Specifications Ramps
27885-0011, 36" Ramp, 5000 lb Capacity | 27885-0029, 48" Ramp, 5000 lb Capacity | 27885-0037, 60" Ramp, 5000 lb Capacity | 27885-0045, 72" Ramp, 5000 lb Capacity | 27885-0060, 96" Ramp, 5000 lb Capacity | 27885-0078, 30" Ramp, 5000 lb Capacity | 27988-0017, 48" Ramp, 10000 lb Capacity | 27988-0041, 84" Ramp, 10000 lb Capacity | 27988-0058, 96" Ramp, 10000 lb Capacity | 27998-0025, 60" Ramp, 10000 lb Capacity | 27998-0033, 72" Ramp, 10000 lb Capacity | 48419-0012, 30" Ramp, 5000 lb Capacity | 48419-0020, 36" Ramp, 5000 lb Capacity | 48419-0038, 48" Ramp, 5000 lb Capacity | 48419-0046, 60" Ramp, 5000 lb Capacity | 48419-0053, 72" Ramp, 5000 lb Capacity | 48419-0079, 96" Ramp, 5000 lb Capacity | 49042-0023, 60" Ramp, 20000 lb Capacity | 49042-0031, 72" Ramp, 20000 lb Capacity | 49042-0049, 84" Ramp, 20000 lb Capacity | 49042-0056, 96" Ramp, 20000 lb Capacity
Specifications Shipping Weight
1,420 lb | 644.1 kg
Specifications Width
96 in
