ProDec DSL Series Low Profile Floor Scale with Four-Way Deck Access
ProDec DSL Series Low Profile Floor Scale with Four-Way Deck Access
SKU:FLO-b5f3fe
Ensure legal compliance with the ProDec DSL Series Low Profile Floor Scale featuring Four-Way Deck Access.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
ProDec DSL Series Low Profile Floor Scale with Four-Way Deck Access
$1,299.99
Quantity: 1
Claim Your Seller Account
ProDec DSL Series Low Profile Floor Scale with Four-Way Deck Access
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

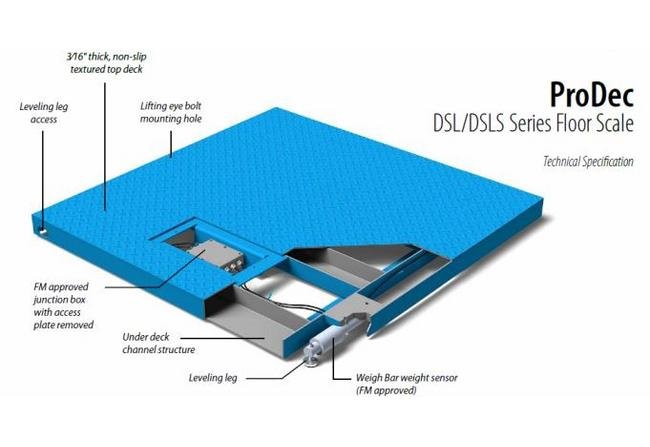

The ProDec DSL Series Low Profile Floor Scale is a reliable solution that meets rigorous institutional standards such as Legal-for-Trade, CoC 90-132, and Class III requirements. Featuring a high-grade powder paint finish safety tread plate deck and weight sensors, this scale comes equipped with a gasketed junction box, 25' interface cable, and 4 Avery Weigh-Tronix Weigh Bars® for accurate readings. With options for various ramps and accessories, this scale offers flexibility to suit different operational needs. Specify dimensions, interface cable connection, and additional accessories to customize your order.
Product Specifications
Options Accessories
[15923-0325] - Platform lifting eye (must be requested at time of order) On all decks with a width dimension of less than 60", two (2) lifting eyes may be ordered at no additional charge. Decks with a width dimension of 60" or more may be ordered with four (4) lifting eyes at no additional charge. | [27874-0022] - Bolt down floor plate (5,000 lb) | [27877-0011-MTS] - Straight ramp attachment bracket (5,000 lb) | [27999-0022] - Bolt down floor plate (10,000 lb) | [28000-0019] - Straight ramp attachment bracket (10,000 lb) | [49022-0027] - Bolt down floor plate (20,000 lb) | [49025-0016] - Straight ramp attachment bracket (20,000 lb)
Options Options
AWT05-507868 -Forklift Frame - DSL 48" x 48" - 5,000 lb / 10,000 lb w/ indicator column. Mild Steel
Specifications Capacity
2,000 to 5,000 lb | 1,000 to 2,500 kg
Specifications Height
3.31 in | 8.4 cm
Specifications Length
36 in
Specifications Model Number
DSL3636-05
Specifications Notes
5,000 lb decks may be legally installed as a 2,000 lb capacity scale with 0.5 lb increments.When removing existing junction box from scale, add charge for extra cable length to each weight sensor
Specifications Ramps
27885-0011, 36" Ramp, 5000 lb Capacity | 27885-0029, 48" Ramp, 5000 lb Capacity | 27885-0037, 60" Ramp, 5000 lb Capacity | 27885-0045, 72" Ramp, 5000 lb Capacity | 27885-0060, 96" Ramp, 5000 lb Capacity | 27885-0078, 30" Ramp, 5000 lb Capacity | 27988-0017, 48" Ramp, 10000 lb Capacity | 27988-0041, 84" Ramp, 10000 lb Capacity | 27988-0058, 96" Ramp, 10000 lb Capacity | 27998-0025, 60" Ramp, 10000 lb Capacity | 27998-0033, 72" Ramp, 10000 lb Capacity | 48419-0012, 30" Ramp, 5000 lb Capacity | 48419-0020, 36" Ramp, 5000 lb Capacity | 48419-0038, 48" Ramp, 5000 lb Capacity | 48419-0046, 60" Ramp, 5000 lb Capacity | 48419-0053, 72" Ramp, 5000 lb Capacity | 48419-0079, 96" Ramp, 5000 lb Capacity | 49042-0023, 60" Ramp, 20000 lb Capacity | 49042-0031, 72" Ramp, 20000 lb Capacity | 49042-0049, 84" Ramp, 20000 lb Capacity | 49042-0056, 96" Ramp, 20000 lb Capacity
Specifications Shipping Weight
223 lb | 101 kg
Specifications Width
36 in
