ProDec Low Profile Floor Scale - DSL8472-10
ProDec Low Profile Floor Scale - DSL8472-10
SKU:FLO-e2eb81
High-quality ProDec DSL Series Floor Scale for accurate measurements and legal-for-trade use in institutional settings.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
ProDec Low Profile Floor Scale - DSL8472-10
$1,899.99
Quantity: 1
Claim Your Seller Account
ProDec Low Profile Floor Scale - DSL8472-10
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

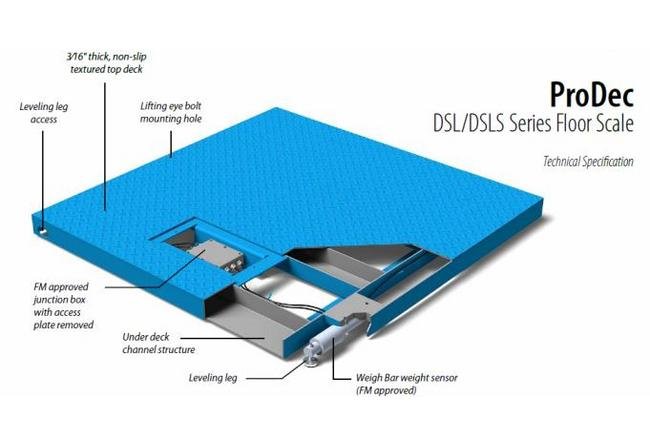

The ProDec DSL Series Low Profile Floor Scale features a four-way deck access design and a legal-for-trade certification (CoC 90-132, Class III) suitable for institutional use. With a capacity ranging from 5,000 to 10,000 lb (2,500 to 5,000 kg), this scale includes high-grade powder-coated finish, safety tread plate deck, and weigh sensors. The package comes with essential accessories like a gasketed junction box, interface cable, and 4 Avery Weigh-Tronix Weigh Bars® for precise weight measurements. Designed with user convenience in mind, it offers easy top access for efficient operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Options Accessories
[15923-0325] - Platform lifting eye (must be requested at time of order) On all decks with a width dimension of less than 60", two (2) lifting eyes may be ordered at no additional charge. Decks with a width dimension of 60" or more may be ordered with four (4) lifting eyes at no additional charge. | [27874-0022] - Bolt down floor plate (5,000 lb) | [27877-0011-MTS] - Straight ramp attachment bracket (5,000 lb) | [27999-0022] - Bolt down floor plate (10,000 lb) | [28000-0019] - Straight ramp attachment bracket (10,000 lb) | [49022-0027] - Bolt down floor plate (20,000 lb) | [49025-0016] - Straight ramp attachment bracket (20,000 lb)
Options Options
AWT05-507868 -Forklift Frame - DSL 48" x 48" - 5,000 lb / 10,000 lb w/ indicator column. Mild Steel
Specifications Capacity
5,000 to 10,000 lb | 2,500 to 5,000 kg
Specifications Height
4.06 in | 10.3 cm
Specifications Length
84 in
Specifications Model Number
DSL8472-10
Specifications Notes
10,000 lb decks may be legally installed as a 5,000 lb capacity scale with 1 lb increments. When used as a 5,000 lb scale, 10,000 lb ramps, pit frames and accessories are required.When removing existing junction box from scale, add charge for extra cable length to each weight sensor
Specifications Ramps
27885-0011, 36" Ramp, 5000 lb Capacity | 27885-0029, 48" Ramp, 5000 lb Capacity | 27885-0037, 60" Ramp, 5000 lb Capacity | 27885-0045, 72" Ramp, 5000 lb Capacity | 27885-0060, 96" Ramp, 5000 lb Capacity | 27885-0078, 30" Ramp, 5000 lb Capacity | 27988-0017, 48" Ramp, 10000 lb Capacity | 27988-0041, 84" Ramp, 10000 lb Capacity | 27988-0058, 96" Ramp, 10000 lb Capacity | 27998-0025, 60" Ramp, 10000 lb Capacity | 27998-0033, 72" Ramp, 10000 lb Capacity | 48419-0012, 30" Ramp, 5000 lb Capacity | 48419-0020, 36" Ramp, 5000 lb Capacity | 48419-0038, 48" Ramp, 5000 lb Capacity | 48419-0046, 60" Ramp, 5000 lb Capacity | 48419-0053, 72" Ramp, 5000 lb Capacity | 48419-0079, 96" Ramp, 5000 lb Capacity | 49042-0023, 60" Ramp, 20000 lb Capacity | 49042-0031, 72" Ramp, 20000 lb Capacity | 49042-0049, 84" Ramp, 20000 lb Capacity | 49042-0056, 96" Ramp, 20000 lb Capacity
Specifications Shipping Weight
1,027 lb | 467 kg
Specifications Width
72 in
