Professional 1.8mm Digital Humidity Sensor with I²C Output
$24.99
Quantity: 1
Claim Your Seller Account
Professional 1.8mm Digital Humidity Sensor with I²C Output
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

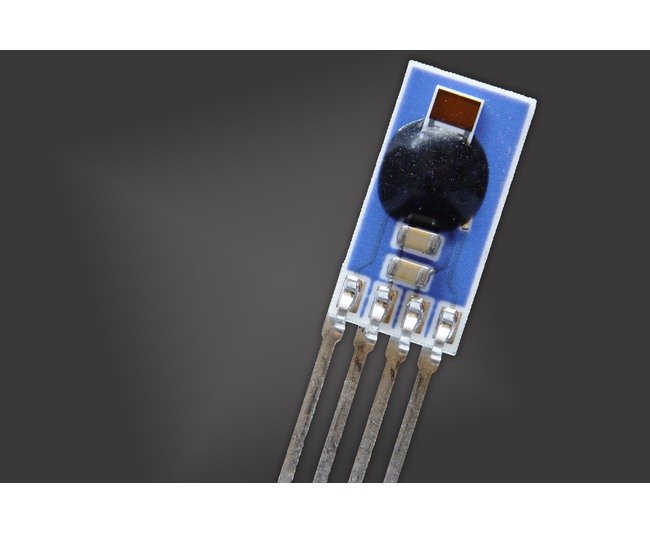

Upgrade your environmental monitoring with the Professional 1.8mm Digital Humidity Sensor. This sensor, calibrated and temperature-compensated to ensure precision, offers a wide operating range and high accuracy levels for both humidity and temperature measurements. Featuring an I²C digital interface and compact, condensation-proof design, this sensor is ideal for critical applications demanding reliability and performance. RoHS compliant and manufactured by Innovative Sensor Technology, USA Division, it meets high industry standards.
Product Specifications
Accessories

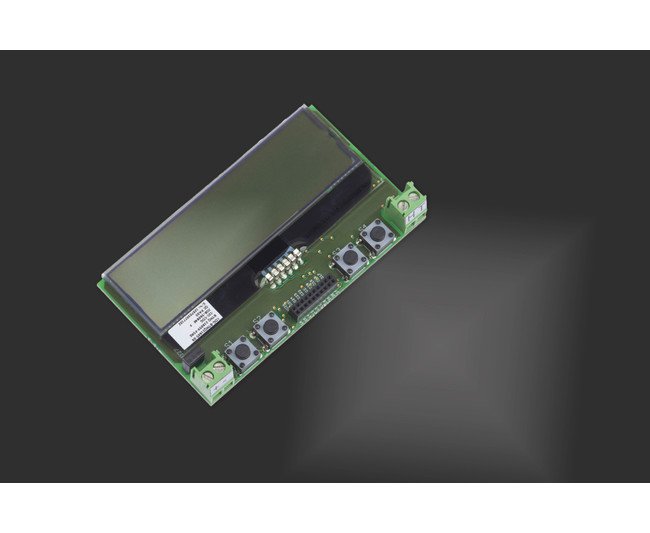

Item # - 105396Item Name - HYT Liquid Crystal Display (LCD) ModuleDescription - Optimal for evaluation and demonstration of the HYT modules.HYT LCD Module for the correction of humidity and temperature measurement values and a permanent storage of the correction valuesLength - 70 mmWidth - 40 mmHumidity Output Signal - 0 V to 10 V (0 % RH to 100 % RH)Temperature Output Signal: 0 V to 10 V (-40 to +125 ºC)Sampling Time: 1 sSupply Voltage: 3 V by internal CR2032 (battery not included) or 5 V by external supply, reverse polarity protected, automatic switchover.Current Consumption: < 4 mADisplay: Liquid Crystal Display (LCD) with 2 x 8 CharactersMaximum Load on the Outputs: 10 mA
Dimensions Height
1.8 mm
Dimensions Length
10.2 mm
Dimensions Width
5.1 mm
Specifications Current Consumption At 1 Hertz Hz Measuring Rate
< 22 µA
Specifications Current Consumption In Sleep Mode
< 1 µA
Specifications Digital Interface
Address 0 x 28 or Alternative Address | Inter-Integrated Circuit (I²C)
Specifications Humidity Accuracy
1.8 %
Specifications Manufacturer Part Number
HYT 271
Specifications Old Product Code
150.00066
Specifications Operating Relative Humidity Rh Range
0 to 100 %
Specifications Operating Temperature Range
-40 to +125 ºC
Specifications Operating Voltage
2.7 to 5.5 V
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Accuracy
0.2 ºC
Specifications Wire Length
27 mm
Specifications Wire Type
SIL RM 1
