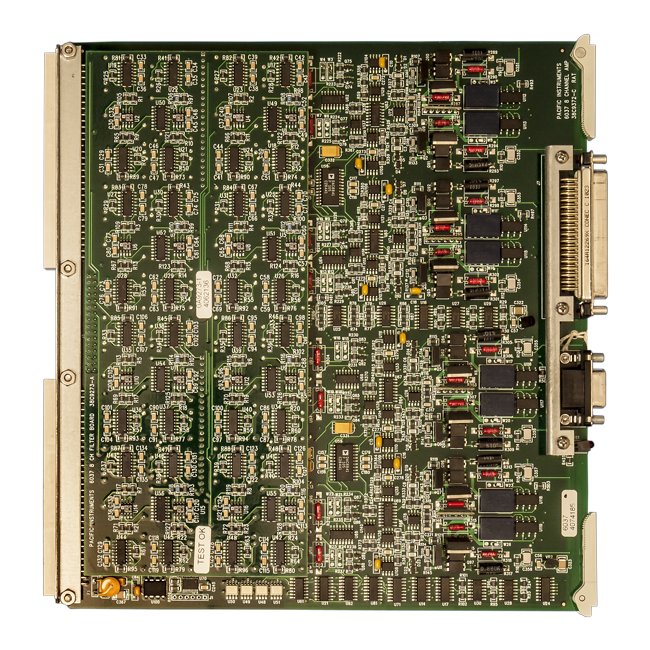

Professional 8-Channel Strain/Bridge Signal Processor
Professional 8-Channel Strain/Bridge Signal Processor
SKU:INT-8b2a9c
Cutting-edge 8-Channel Signal Processor with precision conditioning & versatile compatibility.
Regular price
$1,599.00
Regular price
Sale price
$1,599.00
Unit price
per
Initiate Order
Professional 8-Channel Strain/Bridge Signal Processor
$1,599.00
Quantity: 1
Claim Your Seller Account
Professional 8-Channel Strain/Bridge Signal Processor
$1,599.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Professional 8-Channel Strain/Bridge Signal Processor is a cutting-edge solution designed for precision signal conditioning in demanding measurement applications. With programmable input configurations, automatic gain ranging, and versatile compatibility with strain gauges, transducers, and low-level voltage signals, this device offers unmatched flexibility. Its advanced features include a four-pole low-pass filter, high-resolution digitization, and two programmable alarms for precise monitoring. Ideal for use in industries requiring accurate measurements and reliable data processing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
1 kHz | -3 dB
Amplifier Common Mode
60 dB plus gain in dB up to 106 dB, DC to 60 Hz for ±10 Volts.
Amplifier Gain
Programmable 1 to 5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.004%/ºC.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.
Amplifier Noise 10 Hz
0.5 µV peak, RTI.
Amplifier Noise 1 Khz
1.5 µV peak, RTI
Amplifier Recovery
800 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Source Current
±5 nA, ±0.1 nA/ºC
Amplifier Zero Amplifier
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI,±0.2 mV/ºC RTO. Short term: ±2 µV RTI,±0.4 mV RTO for 8 hours.
Automatic Gain Ranging Gain Readback
Gain code for channels 0-3 is readback from channel 8 and channels 4-7 from channel 9. Each channel uses a 4-bits to encode the current gain.
Automatic Gain Ranging Limits
User programmable upper and lower limits for gain change, 0 to 100% of full scale.
Automatic Gain Ranging Persistence
The number of samples (down ranging) or time (up ranging) for which output must remain in violation of limit before gain change takes place. Down ranging is 1 to 128 samples, up ranging is 40 to 90,000 mS.
Automatic Gain Ranging Selection
Program commands select initial gain and enable or disable automatic up ranging and down ranging.
Calibration Shunt
Programmable bipolar shunt. Installed resistor provides 3.0 mV/V ±0.01% for 120 Ohm gage or bridge.
Calibration Voltage Substitution
Alternate amplifier input for external voltage calibrator. Programmable attenuator steps of 1, 0.1 and 0.01 with ±0.02% accuracy. Output of the attenuator provided on rear panel connector for accuracy verification.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
2 LSB (0.006%)
Digitizer Resolution
16-bits, two's complement.
Digitizer Sample
Simultaneous, within ±50 nS channel-to-channel. Droop is less than ±0.005%.
Digitizer Sample Rate
Up to 10 kS/s per channel | Up to 10 kS/s
Excitationtransducer Power Calibration Mode
Voltage monitor, ADC and analog output.
Excitationtransducer Power Current
50 mA, limited to 70 mA. A short on one channel has less than ±0.01% affect on other channels.
Excitationtransducer Power Excitation Noise
200 µV peak-to-peak.
Excitationtransducer Power Regulation
±0.2% line and no-load to full-load measured at the input connector.
Excitationtransducer Power Stability
±0.01%, ±0.005 %/ºC
Excitationtransducer Power Voltage Excitation
Programmable for each channel from 0 to 12 Volts in 1 Volt ±0.1% steps with 3.3 mV resolution fine adjustment.
Filter Frequency
4 programmable frequencies: 10Hz, 100Hz, 200Hz, 1kHz.
Filter Noise Filter
2 mV peak RTO
Filter Other
Other filter characteristics and cut offs are available.
Filter Type
Four-pole, low-pass Butterworth.
Input Balance
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005 %/ºC. Installed range resistor provides 20 mV/V for a 120 Ohm gage or bridge.
Input Configuration
8 channels, 2 to 4 wires plus shield for bridge and voltage. Programmable completion for 1/4, 1/2 and full bridge.
Input Impedance
50 Megohms, shunted by 1,000 pF.
Input Protection
±50 Volts differential, ±30 Volts common mode.
Overview Analog Bandwidth
1 kHz
Overview Excitationtransducer Power
Voltage
