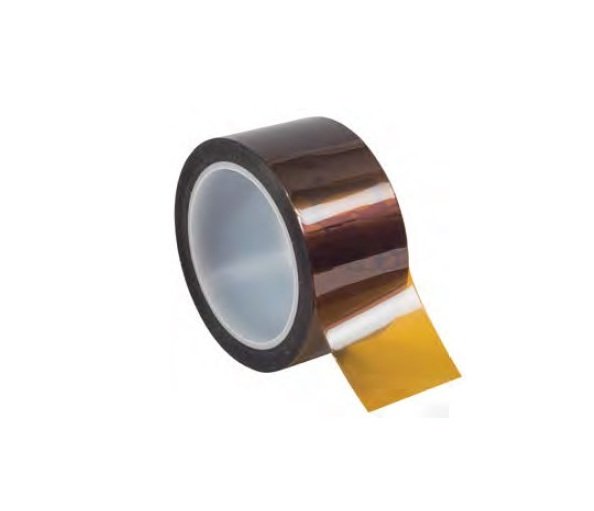

Professional Grade 2 Mil Polyimide Circuit Tape
Professional Grade 2 Mil Polyimide Circuit Tape
SKU:POL-fd0622
Experience superior performance with our 2 Mil Polyimide Circuit Tape. Ideal for automotive, aerospace, and PCB industries. Temperature resistant up to 500°F/260°C.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Professional Grade 2 Mil Polyimide Circuit Tape
$79.99
Quantity: 1
Claim Your Seller Account
Professional Grade 2 Mil Polyimide Circuit Tape
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Professional Grade 2 Mil Polyimide Circuit Tape is a must-have for industries like automotive, aerospace, and PCB production. With a temperature rating of 500°F/260°C and meeting Class H requirements, this tape offers exceptional dielectric strength and chemical resistance. It features a silicone adhesive that leaves no residue upon removal, making it ideal for applications such as powder coating, E-coating, wave soldering, hot air leveling, and circuit board insulation. The tape is manufactured from high-quality polyimide film, ensuring excellent physical, mechanical, and electrical properties over a wide temperature range.
Product Specifications
Specifications Case Quantity
144
Specifications Construction
1.5 Mil Silicone Adhesive | 2 Mil Polyimide Carrier | 3.5 Mil Total Thickness
Specifications Features
Temperature Rating 500 °F/260 °C Meets Class H Requirements, Flame Retardant Excellent Dielectric Strength and Chemical Resistance Used in Powder Coating, E-Coating, Wave Soldering, Hot Air Leveling, and Circuit Board Insulation
Specifications Roll Length
36 yd
Specifications Width
0.125 Inch | 3.17 mm
