Professional Grade Utility Diamond Negative Turning Blank with Hole, 0.260/0.268 in Thickness

Name: Professional Grade Utility Diamond Negative Turning Blank with Hole, 0.260/0.268 in Thickness
Brand: Ultra-Met
SKU: TUR-04f071
Price: 29.99 USD
Availability: OutOfStock

SKU:TUR-04f071

Enhance turning precision with our Utility Diamond Negative Blank, 0.260/0.268 in. Customize grade options for superior performance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Professional Grade Utility Diamond Negative Turning Blank with Hole is precision-engineered for exceptional performance in turning applications. With a thickness range of 0.260 to 0.268 inches, an Inscribed Circle of 0.622 to 0.628 inches, a 1/32 inch Radius, and a 55-degree Angle, this blank offers superior durability and cutting precision. The included hole with a diameter of 0.247 to 0.253 inches adds versatility to your machining projects. Grade availability can be tailored to your specific requirements, ensuring optimal results for your turning needs.

Product Specifications

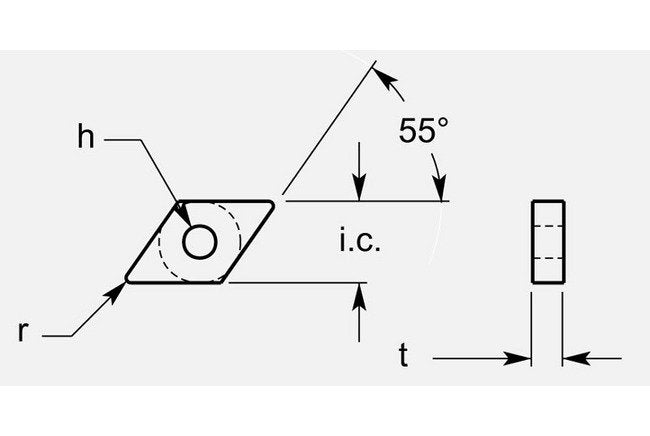

Dimensional Specification Angle A

55 Âº

Dimensional Specification Hole

0.247 / 0.253 in

Dimensional Specification Inscribed Circle Ic

0.622/0.628 in

Dimensional Specification Radius R

1/32 in

Dimensional Specification Thickness T

0.260 / 0.268 in

Grade Availability Grade Availability

Available on Request

Professional Grade Utility Diamond Negative Turning Blank with Hole, 0.260/0.268 in Thickness
