Professional Large Loop Demagnetizer
Professional Large Loop Demagnetizer
SKU:LAR-23aa03
Efficiently demagnetize workpieces with precision and durability. Meets stringent industry standards.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Professional Large Loop Demagnetizer
$1,599.99
Quantity: 1
Claim Your Seller Account
Professional Large Loop Demagnetizer
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

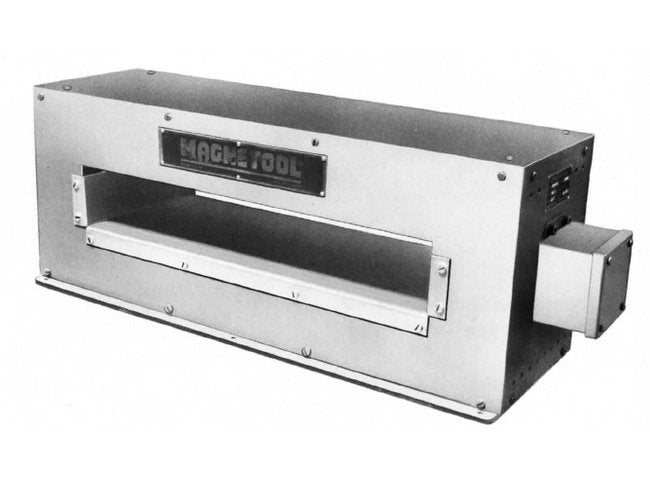

The Professional Large Loop Demagnetizer is designed for efficient demagnetization of workpieces with precision. Featuring an opening height of 6 inches and width of 12 inches, this demagnetizer ensures thorough demagnetization. With a durable NEMA 12 Enclosure and made of high-quality Magnetic Steel with Non-Magnetic materials, it meets stringent industry standards. Additional features include a split conveyor design for non-magnetic materials, making it ideal for heavy-duty industrial applications.
Product Specifications
Additional Information 0
Another method is to place a Surface Type Demagnetizer under the belt and if necessary, another unit suspended over the belt so the work passes between the two Demagnetizers. These Demagnetizers should be placed on a non-metallic surface to reduce the heating caused by induction.A fused disconnect switch should be inserted in the AC supply line for protection. Special demagnetizer controls can be furnished with a NEMA 12 enclosure, push buttons, pilot lamp, ammeter, voltmeter, foot pedal, and automatic timers. An alternative is to have only the belt pass through the demagnetizer.
Manufacturing Notes 0
CAUTION: Demagnetizers should not be used near sensitive electronic equipment. Special standards are available.
Specifications Current For Single Phase Voltage 230 Vac
28 A
Specifications Current For Single Phase Voltage 460 Vac
14 A
Specifications Duty Percentage
25 %
Specifications Duty Type
Intermittent
Specifications Material
Magnetic Steel | Non-Magnetic Stainless Steel, Aluminum, Brass.
Specifications Net Weight
125 lb
Specifications Opening Height
6 in
Specifications Opening Width
12 in
Specifications Overall Depth
9 1/2 in
Specifications Overall Height
17 in
Specifications Overall Width
24 in
Specifications Standards
NEMA 12 Enclosure
