ProForge Stainless Steel Turnbuckle
ProForge Stainless Steel Turnbuckle
SKU:STA-508fe2
Durable ProForge Stainless Steel Turnbuckle for marine & industrial use. Grade 316-NM, ASTM F1145-05 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
ProForge Stainless Steel Turnbuckle
$24.99
Quantity: 1
Claim Your Seller Account
ProForge Stainless Steel Turnbuckle
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

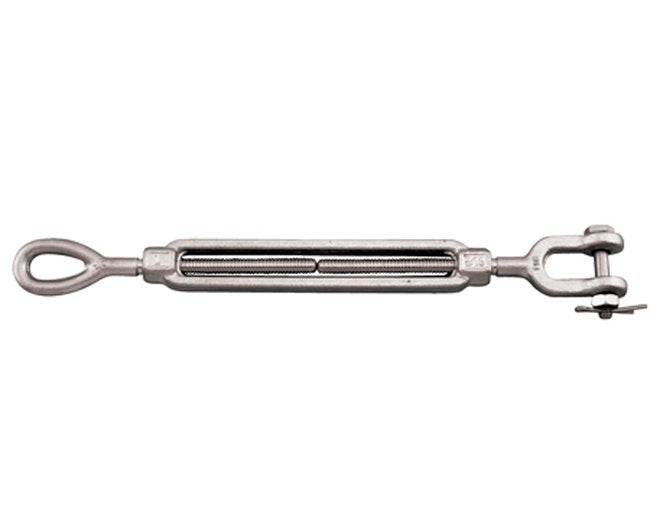

The ProForge Stainless Steel Turnbuckle with a forged jaw and eye design is a robust solution for marine and industrial applications. Crafted from grade 316-NM stainless steel, it offers unparalleled corrosion resistance and durability. Meeting ASTM F1145-05 (2011) Type 1, Class H standards, this turnbuckle ensures reliable performance and safety for a wide range of projects.

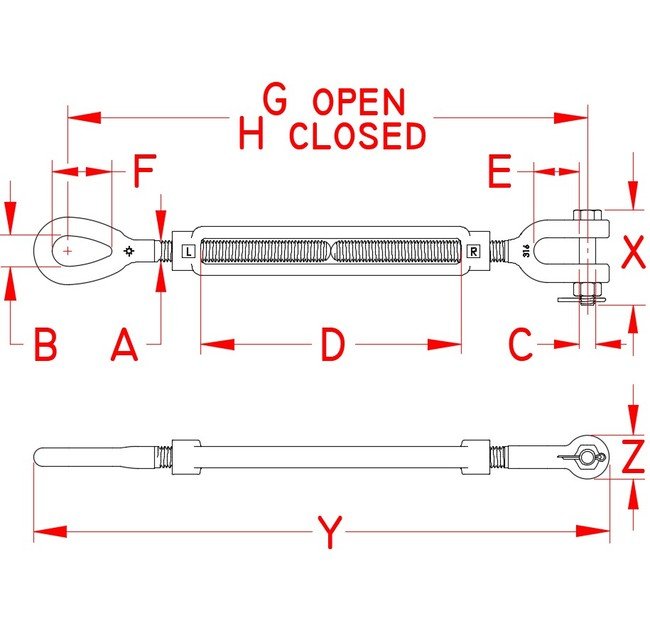

Product Specifications
Specifications Dimension A
5/16 in
Specifications Dimension B
0.41 in
Specifications Dimension C
0.25 in
Specifications Dimension D
4.50 in
Specifications Dimension E
0.80 in
Specifications Dimension F
0.90 in
Specifications Dimension G
12.90 in
Specifications Dimension H
9.25 in
Specifications Dimension X
1.68 in
Specifications Dimension Y
10.00 in
Specifications Dimension Z
0.72 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
0.57 lb
Specifications Working Load Limit Wll
800 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
