ProRack Heavy-Duty Field Ruggedized Equipment Case
ProRack Heavy-Duty Field Ruggedized Equipment Case
SKU:PEL-668a91
Protect delicate equipment with confidence in the ProRack Heavy-Duty Field Ruggedized Equipment Case. Designed for reliability and optimal shock absorption, this case is perfect for critical applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
ProRack Heavy-Duty Field Ruggedized Equipment Case
$349.99
Quantity: 1
Claim Your Seller Account
ProRack Heavy-Duty Field Ruggedized Equipment Case
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ProRack Heavy-Duty Field Ruggedized Equipment Case is a top choice for safeguarding delicate equipment in challenging environments. With a rack height of 8U and a weight capacity of up to 75 lbs, this case offers exceptional protection with individually tuned shock mounts, ensuring optimal shock and vibration dampening. It features a rugged 18" deep design with an aircraft aluminum frame suspended on plastic fins, providing superior impact resistance. Ideal for applications in precision testing, medical equipment, broadcasting, aerospace, and more, this case is designed to meet the most demanding protection standards.
Product Specifications
Note 0
The variance in rack length based on non shock mounted frame - "17" rack frame is only obtained by purchasing extra rack frame for the rear of the case, 17" rack length may vary - this is not a shock mounted rack"
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.

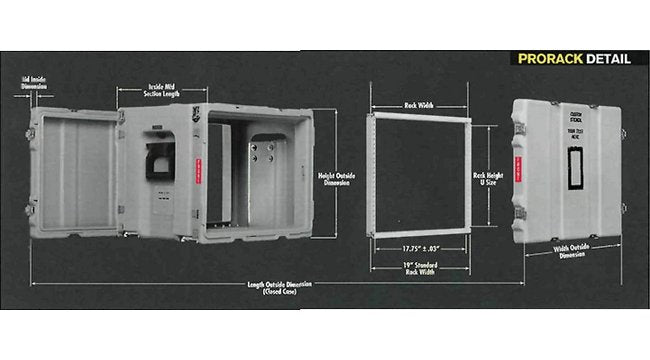

Specifications Height Od
18.3 in | 464 mm
Specifications Length Od
22 in | 559 mm
Specifications Lid Id Back
1.81 in | 46 mm
Specifications Lid Id Front
1.81 in | 46 mm
Specifications Rack Height U Size
8U | 14.00 in | 355.6 mm
Specifications Rack Length
18 in | 457 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
5.2 ft³ | 0.15 m³
Specifications Weight
27.3 lb | 12.4 kg
Specifications Width Od
22.4 in | 568 mm
