ProRack Rack Cases - 4U, 18'' Depth
ProRack Rack Cases - 4U, 18'' Depth
SKU:PEL-e2d9f5
Lightweight and rugged ProRack Cases with 4U rack height, ideal for delicate field equipment, featuring shock mounts for maximum protection.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
ProRack Rack Cases - 4U, 18'' Depth
$289.99
Quantity: 1
Claim Your Seller Account
ProRack Rack Cases - 4U, 18'' Depth
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ProRack Rack Cases offer a durable and lightweight solution for transporting field ruggedized equipment up to 75 lbs with fragility ratings of 80-120 G. Featuring a 4U rack height, these 18'' deep cases are designed with individually-tuned shock mounts, ideal for delicate equipment requiring maximum protection. The aircraft aluminum frame suspended on plastic fins ensures protection from direct impact transmission, making them perfect for field-deployed amplifiers, electronic, medical, or testing equipment components.

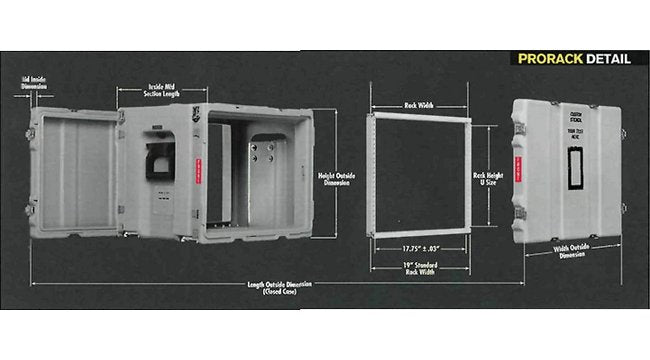

Product Specifications
Note 0
The variance in rack length based on non shock mounted frame - "17" rack frame is only obtained by purchasing extra rack frame for the rear of the case, 17" rack length may vary - this is not a shock mounted rack"
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.
Specifications Height Od
11.3 in | 286 mm
Specifications Length Od
22 in | 559 mm
Specifications Lid Id Back
1.81 in | 46 mm
Specifications Lid Id Front
1.81 in | 46 mm
Specifications Rack Height U Size
4U | 7.00 in | 177.8 mm
Specifications Rack Length
18 in | 457 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
3.2 ft³ | 0.09 m³
Specifications Weight
20.9 lb | 9.5 kg
Specifications Width Od
22.4 in | 568 mm
