ProRack Rack Cases for Precise Equipment Protection
ProRack Rack Cases for Precise Equipment Protection
SKU:PEL-81738e
ProRack Cases: Lightweight 14U rack cases for delicate equipment up to 75 lbs, featuring shock mounts for superior protection and durability.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
ProRack Rack Cases for Precise Equipment Protection
$399.99
Quantity: 1
Claim Your Seller Account
ProRack Rack Cases for Precise Equipment Protection
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ProRack Cases are meticulously designed for the transportation and safeguarding of delicate equipment weighing up to 75 lbs with fragility levels of 80-120 G. These rugged 14U rack cases feature an 18-inch depth and a sturdy aircraft aluminum frame suspended on plastic fins, ensuring protection from direct impact transmission. Each case is equipped with individually tuned shock mounts for exceptional shock and vibration dampening, along with optimal cooling airflow for operational equipment. Ideal for a wide range of applications from precision test equipment to medical devices and aerospace instrumentation, these cases offer top-notch security for equipment ranging from 20 to 340 lbs. With recessed, zinc-plated, yellow chromate hardware for durability and tool-free rack removal, ProRack Cases are the ultimate choice for equipment protection and transport.
Product Specifications
Note 0
The variance in rack length based on non shock mounted frame - "17" rack frame is only obtained by purchasing extra rack frame for the rear of the case, 17" rack length may vary - this is not a shock mounted rack"
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.

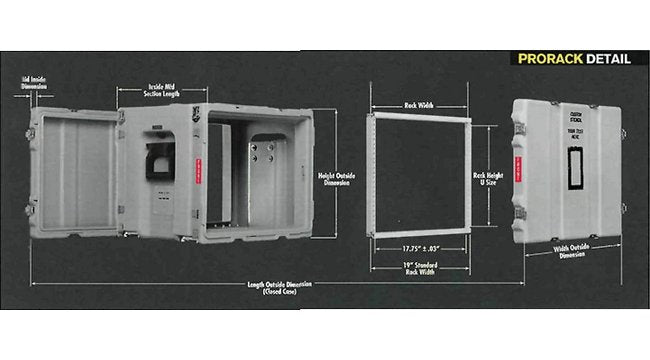

Specifications Height Od
28.0 in | 711 mm
Specifications Length Od
22 in | 559 mm
Specifications Lid Id Back
1.81 in | 46 mm
Specifications Lid Id Front
1.81 in | 46 mm
Specifications Rack Height U Size
14U | 24.50 in | 622.3 mm
Specifications Rack Length
18 in | 457 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
8.0 ft³ | 0.23 m³
Specifications Weight
36.3 lb | 16.5 kg
Specifications Width Od
22.4 in | 568 mm
