ProRack Rugged Aluminum Cases
ProRack Rugged Aluminum Cases
SKU:PEL-fd873e
Ultimate protection for delicate field equipment. Lightweight, shock-resistant, and ideal for various industries.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
ProRack Rugged Aluminum Cases
$299.99
Quantity: 1
Claim Your Seller Account
ProRack Rugged Aluminum Cases
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ProRack Rugged Aluminum Cases are expertly crafted to provide lightweight and space-efficient protection for delicate equipment. Featuring a sturdy aircraft aluminum frame suspended on plastic fins, these cases safeguard gear from direct impact transmission. With individually tuned shock mounts and cooling airflow, they offer exceptional shock and vibration dampening, ideal for field-deployed amplifiers, medical devices, and testing equipment. Designed with security in mind, these cases can protect equipment ranging from 20 to 340 lbs.

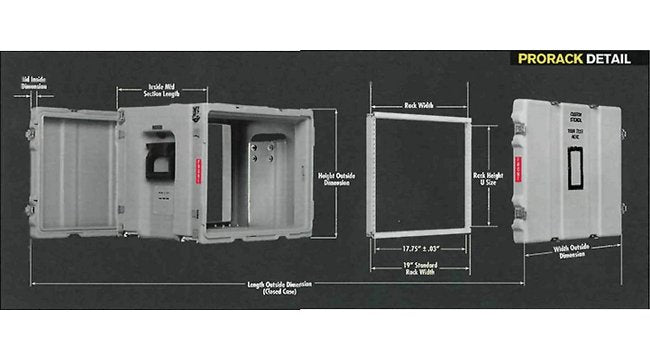

Product Specifications
Note 0
The variance in rack length based on non shock mounted frame - "17" rack frame is only obtained by purchasing extra rack frame for the rear of the case, 17" rack length may vary - this is not a shock mounted rack"
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.
Specifications Height Od
14.8 in | 375 mm
Specifications Length Od
22 in | 559 mm
Specifications Lid Id Back
1.81 in | 46 mm
Specifications Lid Id Front
1.81 in | 46 mm
Specifications Rack Height U Size
6U | 10.50 in | 266.7 mm
Specifications Rack Length
18 in | 457 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
4.2 ft³ | 0.12 m³
Specifications Weight
23.9 lb | 10.8 kg
Specifications Width Od
22.4 in | 568 mm
