Proxxon FF 230 Micro Milling Machine
Proxxon FF 230 Micro Milling Machine
SKU:MIL-b05851
Achieve precision with the Proxxon FF 230 Micro Milling Machine. Versatile, stable, and ideal for professional use.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Proxxon FF 230 Micro Milling Machine
$1,899.99
Quantity: 1
Claim Your Seller Account
Proxxon FF 230 Micro Milling Machine
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

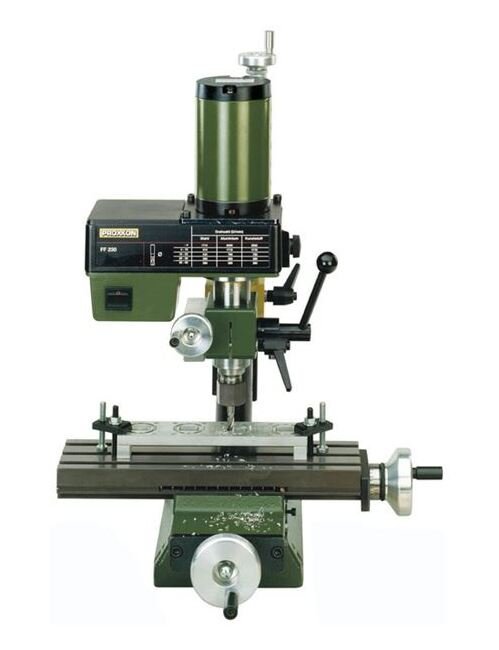

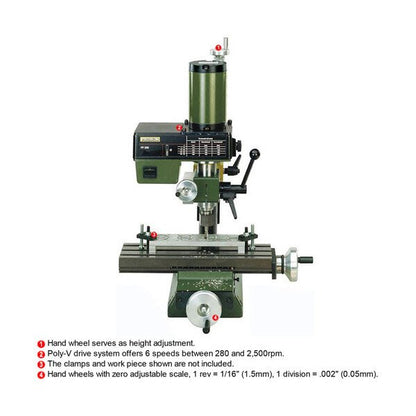

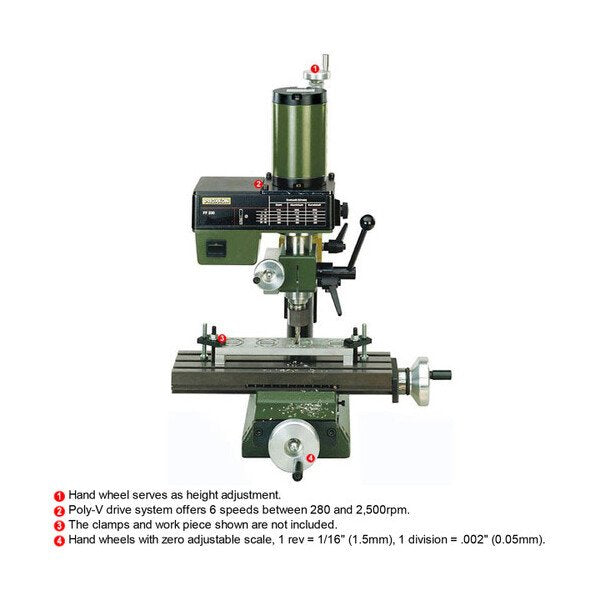

The Proxxon Micro Mill FF 230 is a precision milling machine designed for exceptional accuracy and performance. With a sturdy table size of 10-5/8 x 3-5/32 in, and X-Y travel of 6-11/16 x 2-9/16 in, this machine offers versatility for intricate milling tasks. Operating at variable spindle speeds from 280 to 2200 rpm, it provides ideal control for a range of materials. Lock levers ensure stability during milling operations, guaranteeing precise and consistent results. Perfect for professional workshops, educational institutions, and research facilities.
Product Specifications
Note Note
For best results when milling, it is recommended to lock the headstock. This is easily done via the FF 230's lock levers.
Technical Specs Brands
Proxxon
Technical Specs Column Size
1 3/8 x 15 3/4 in | 35 x 400 mm
Technical Specs Height
20 in | 500 mm
Technical Specs Net Weight
41 lb | 17 kg
Technical Specs Spindle Speeds
280 to 550 to 870 to 1200 to 1500 to 2200 rpm
Technical Specs Table Size
10-5/8 x 3-5/32 in | 270 x 80 mm
Technical Specs Three T Slots Height
13/64 in
Technical Specs Three T Slots Length
15/32 in
Technical Specs Three T Slots Width
15/64 in
Technical Specs Voltage
110 to 120 V
Technical Specs X Y Travel
6-11/16 x 2-9/16 in | 170 x 65 mm
