Proxxon Micro Drill Press 1/64 - 1/4 Inch
Proxxon Micro Drill Press 1/64 - 1/4 Inch
SKU:DRI-746278
Achieve precision drilling with the Proxxon Micro Drill Press, offering high accuracy, three speeds, and versatile collet options.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Proxxon Micro Drill Press 1/64 - 1/4 Inch
$349.99
Quantity: 1
Claim Your Seller Account
Proxxon Micro Drill Press 1/64 - 1/4 Inch
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

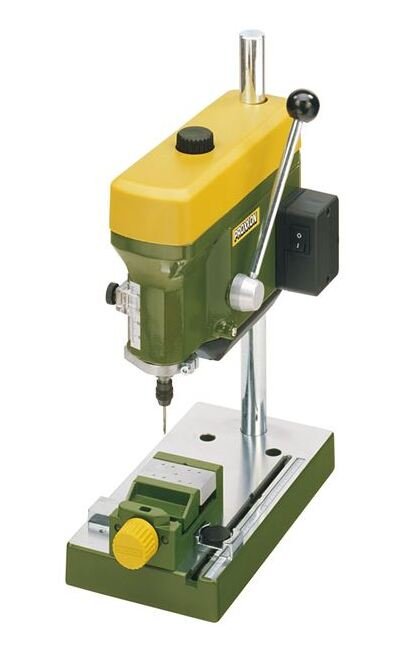

The Proxxon Micro Drill Press offers exceptional rotational accuracy and power transmission. With three speeds (1,800/4,700/8,500rpm) and an adjustable work table (8 1/2" x 4 3/4"), it features a solid steel column (11") and a quiet, powerful motor. The unit provides high torque, a chrome feed lever for depth gauge, and precise spindle (1 3/16") with minimal play. It includes six steel collets, and the option to attach drill chucks for versatile use. Ideal for precision drilling tasks, this drill press ensures stability, reliability, and long-lasting performance.
Product Specifications
Additional Information Additional Information

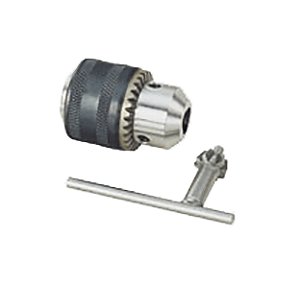

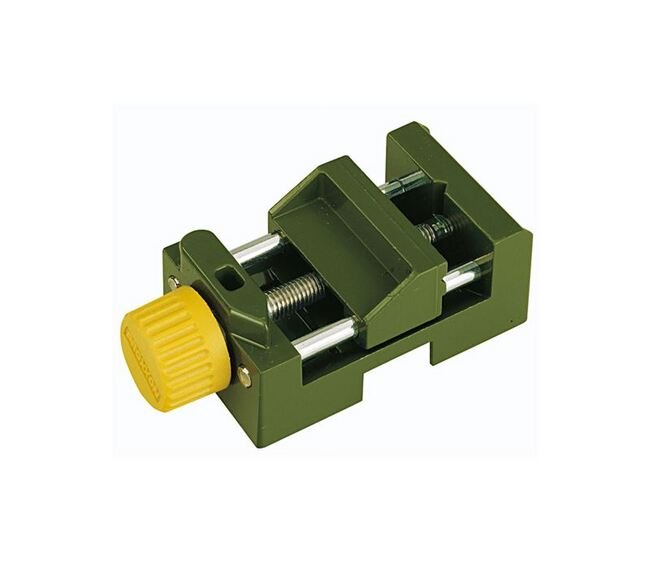

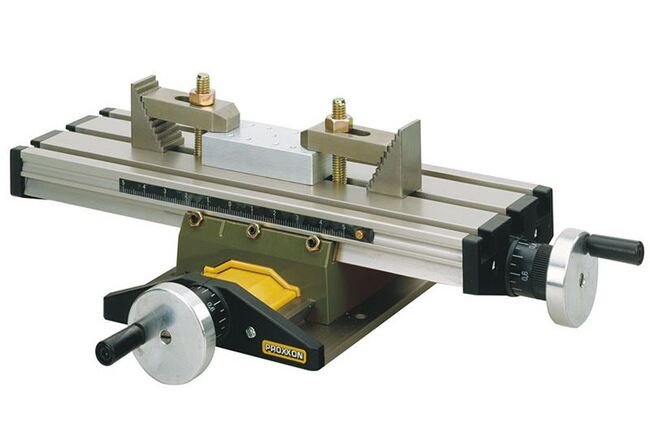

The chrome feed lever has a practical adjustable drilling depth gauge.The spindle is essentially free of play as a result of the three high quality ball bearing assemblies. It is recessed for the insertion of MICROMOT steel collets, but also threaded for attaching drill chucks with 3/8" thread. The spindle has an extremely high rotational accuracy and a 1 3/16" (30mm) feed. The quill diameter is 1 1/4" (32mm) with return spring, the throat depth (column to drill spindle) is 5 1/2" (140mm). The unit provides quick coarse height adjustment of the headstock via clamp lever. The max. height (worktable surface to spindle end) is 5 1/2" 140mm).Technical Data:110 - 120V, 60Hz, 85W (0.115hp), speeds 1,800/ 4,700/8,500rpm.The unit comes with six triple slit MICROMOT precision steel collets in sizes 1/32", 1/16", 5/64", 3/32", 7/64" and 1/8" (1.0, 1.5, 2.0, 2.4, 3.0 and 3.2mm).To clamp work pieces we recommend using either one of our machine vises or the X-Y table KT 70 to convert this machine into a high-precision machining center.
Technical Specs Brands
Proxxon
Technical Specs Drill Shank
1800 mm | 4700 mm | 8500 mm
