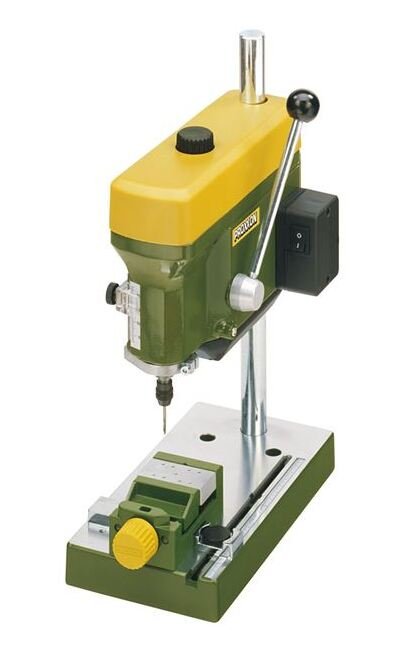

Proxxon Micro Drill Press 1/64" to 1/4"

Name: Proxxon Micro Drill Press 1/64" to 1/4"
Brand: Penn Tool Co.
SKU: DRI-d93d24
Price: 299.99 USD
Availability: OutOfStock

SKU:DRI-d93d24

Experience precise drilling with the Proxxon Micro Drill Press - perfect for professionals and hobbyists alike.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Proxxon Micro Drill Press offers exceptional rotational accuracy and power transmission for precision drilling tasks. Featuring a high-quality machined work table, adjustable parallel fence, and a solid steel column, this drill press ensures stability and durability. With three spindle speeds of 1,800, 4,700, and 8,500rpm, it provides versatility and triple torque at lower speeds. The chrome feed lever with adjustable depth gauge, three ball bearing spindle assembly, and quick height adjustment further enhance its functionality.

Product Specifications

Additional Information Additional Information

The chrome feed lever has a practical adjustable drilling depth gauge.The spindle is essentially free of play as a result of the three high quality ball bearing assemblies. It is recessed for the insertion of MICROMOT steel collets, but also threaded for attaching drill chucks with 3/8" thread. The spindle has an extremely high rotational accuracy and a 1 3/16" (30mm) feed. The quill diameter is 1 1/4" (32mm) with return spring, the throat depth (column to drill spindle) is 5 1/2" (140mm). The unit provides quick coarse height adjustment of the headstock via clamp lever. The max. height (worktable surface to spindle end) is 5 1/2" 140mm).Technical Data:110 - 120V, 60Hz, 85W (0.115hp), speeds 1,800/ 4,700/8,500rpm.The unit comes with six triple slit MICROMOT precision steel collets in sizes 1/32", 1/16", 5/64", 3/32", 7/64" and 1/8" (1.0, 1.5, 2.0, 2.4, 3.0 and 3.2mm).To clamp work pieces we recommend using either one of our machine vises or the X-Y table KT 70 to convert this machine into a high-precision machining center.

Technical Specs Brands

Proxxon

Technical Specs Speed

1800 rpm | 4700 rpm | 8500 rpm
