Proxxon Precision Micro Milling Machine

Name: Proxxon Precision Micro Milling Machine
Brand: Penn Tool Co.
SKU: MIL-419375
Price: 799.99 USD
Availability: OutOfStock

SKU:MIL-419375

Achieve precision milling with the versatile Proxxon Micro Milling Machine, crafted for stability and durability in high-speed operations.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

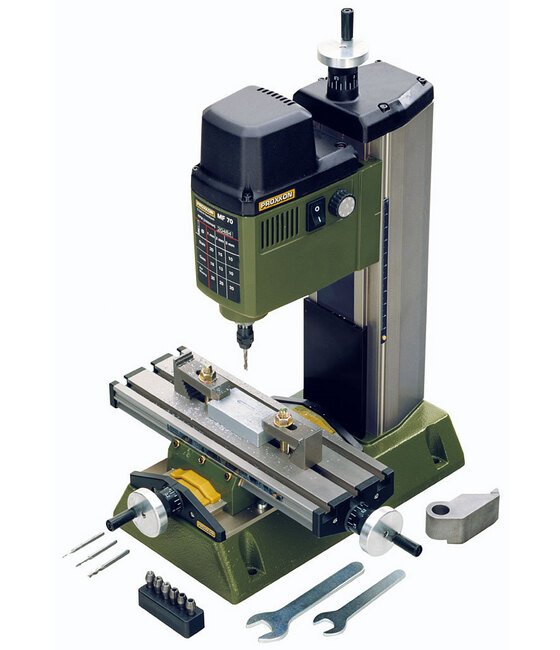

The Proxxon Precision Micro Milling Machine is a versatile and reliable tool designed for precision milling tasks. Crafted with a robust cast iron base and high-quality aluminum components, it ensures stability and durability even at high speeds. The headstock features a 24 pole balanced motor for smooth operation, accommodating the use of the finest cutters. With play-free adjustable slides and six hardened steel collets included, this machine offers precise control and versatility for various machining projects. The table with T-slots and adjustable ruler scale simplifies workpiece positioning, making it ideal for intricate tasks requiring accuracy up to 0.002". Suitable for both consumer and institutional buyers, the Proxxon Micro Milling Machine is a compact powerhouse built to meet demanding standards.

Product Specifications

Additional Information Additional Information

The table is fitted with three T-slots of the 15/32" x 15/64" x 13/64" (12 x 6 x 5mm) MICROMOT-norm. An adjustable ruler scale eases the positioning of the work piece. All hand wheels are zero adjustable with 1 revolution = 1/32" (1.0mm), 1 division = .002" (0.05mm).

Features Features

Way covers2 speed ranges

Technical Specs Alternating Voltage Current Vac At 60 Hertz Hz

110 to 120 V

Technical Specs Brands

Proxxon

Technical Specs Footprint Size

5-7/64 x 8-55/64 in | 130 x 225 mm

Technical Specs Height

13-25/64 in | 340 mm

Technical Specs Included Items

Drill chuck. | Instruction manual | Keys

Technical Specs Maximum Power

1/8 hp | 100 W

Technical Specs Speed Range

5000 to 20000 rpm

Technical Specs Table Size

7-7/8 x 2-3/4 in | 200 x 70 mm

Technical Specs Vertical Travel

2-3/4 in | 70 mm

Technical Specs Weight

15.5 lb | 7 kg

Technical Specs X Y Travel

1-13/16 in | 5-17/64 in | 134 mm | 46 mm

Proxxon Precision Micro Milling Machine
