PS10 Metric Flush-Mounted Screw
PS10 Metric Flush-Mounted Screw
SKU:PEM-609e36
High-quality PS10 Metric Flush-Mounted Screw for secure metal panel fastening. ANSI/ASME compliant stainless steel design.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PS10 Metric Flush-Mounted Screw
$12.99
Quantity: 1
Claim Your Seller Account
PS10 Metric Flush-Mounted Screw
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

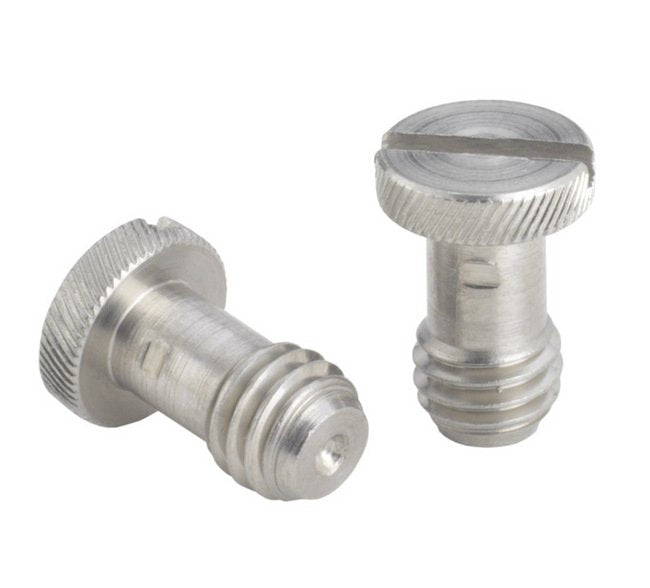

The PS10 Metric Flush-Mounted Screw is designed for precision fastening in metal sheets and panels. With specifications meeting ANSI/ASME standards, this screw features M4 x 0.7 thread size, 300 Series Stainless Steel construction, and passivated finish per ASTM A380. Perfect for secure installations, each screw is CAD supplied by PennEngineering® (PEM®), ensuring reliability and durability.

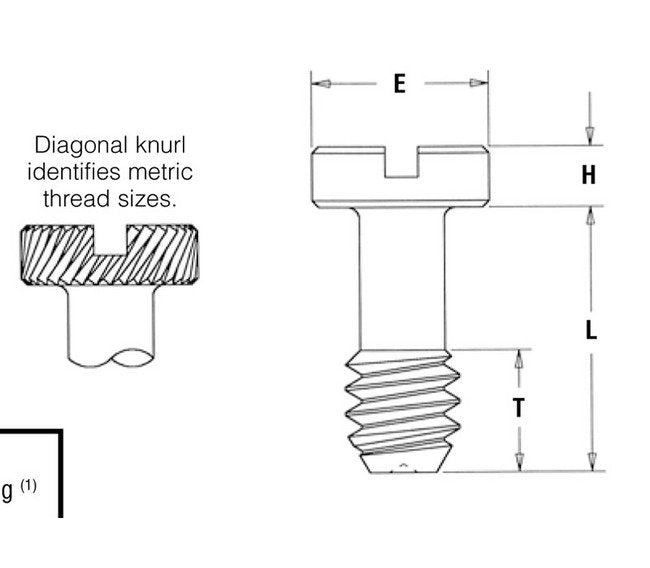

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications E Nom
6.30 mm
Specifications Finish
Passivated and/or tested per ASTM A380
Specifications H 005 015
1.91 mm
Specifications L 025
8.38 mm
Specifications Material
300 Series Stainless Steel
Specifications Screw Length Code
40
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PS10
Specifications T Nom
3.30 mm
