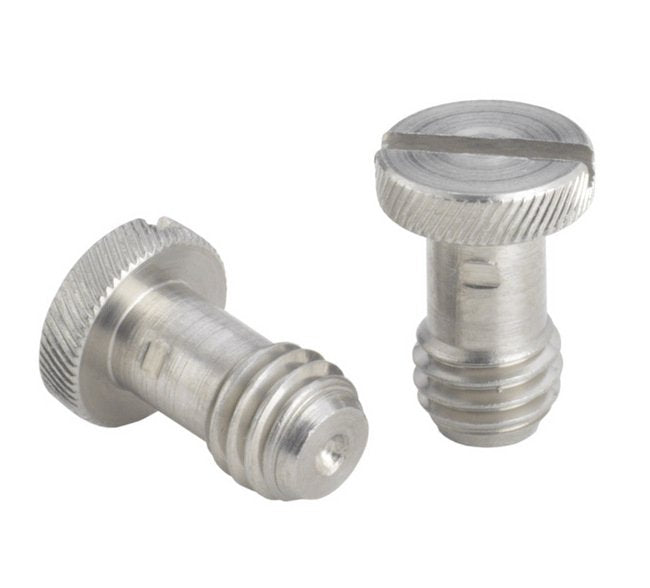

The PS10 Metric Flush-Mounted Screw is a precision-engineered fastening solution designed for metal sheets and panels. Made from high-quality 300 Series Stainless Steel and featuring a passivated finish per ASTM A380, this screw ensures durability and corrosion resistance. With ANSI/ASME B1.13M, 6g thread specification and precise measurements, it guarantees a secure and reliable connection. Ideal for captive panel applications, this PEM® Brand Fastener meets the stringent requirements of institutional and government procurement standards.
Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)

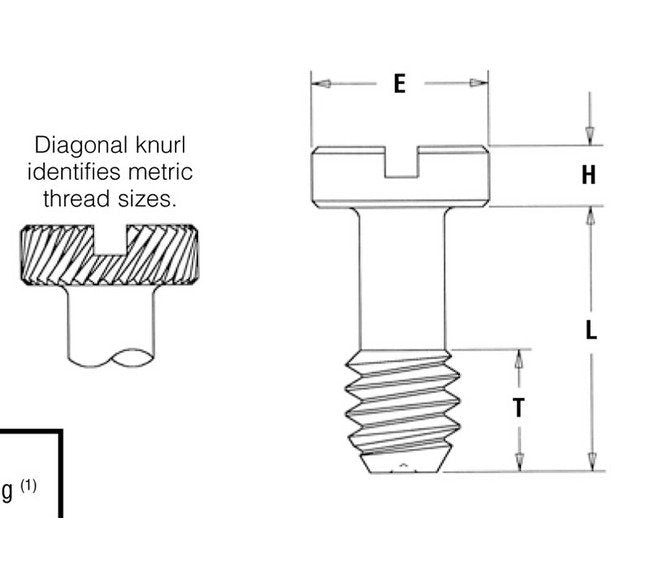

Specifications E Nom
7.10 mm
Specifications Finish
Passivated and/or tested per ASTM A380
Specifications H 005 015
1.91 mm
Specifications L 025
8.38 mm
Specifications Material
300 Series Stainless Steel
Specifications Screw Length Code
40
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PS10
Specifications T Nom
3.30 mm
