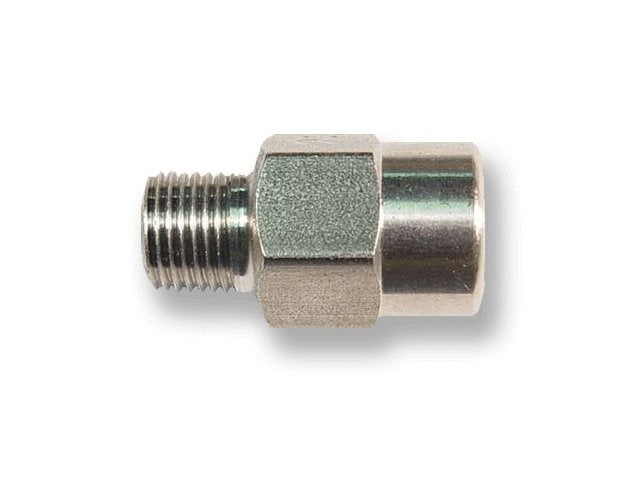

PSCV Series 1/4in Brass Piston Check Valve
PSCV Series 1/4in Brass Piston Check Valve
SKU:PIS-7c921c
Reliable PSCV Series 1/4in Brass Piston Check Valve for secure seals with Brass body and multiple spring options.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PSCV Series 1/4in Brass Piston Check Valve
$29.99
Quantity: 1
Claim Your Seller Account
PSCV Series 1/4in Brass Piston Check Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PSCV Series 1/4 Inch Brass Piston Check Valve ensures a reliable bubble-tight seal with a cracking pressure of 1 psi and a maximum pressure of 500 psi. Crafted from Brass, it withstands temperatures up to 250°F. This valve includes a 302 Stainless Steel spring and Steel retainer, with optional springs available. Choose from Buna, EPDM, or FKM seals. Contact our sales department for customization options.
Product Specifications
Note Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Check Valve Type
Piston
Technical Specs Crack Pressure
1 psi
Technical Specs Material
Brass
Technical Specs Maximum Pressure
500 psi
Technical Specs Maximum Working Temperature
250 ºF
Technical Specs Series
PSCV
Technical Specs Thread Size
1/4 x 1/4 in
Technical Specs Thread Type
Male National Pipe Thread (MNPT)
