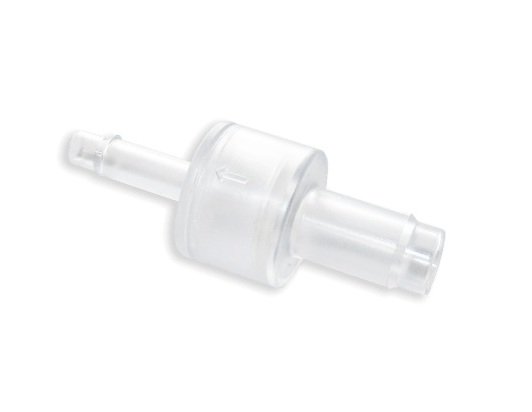

PSSV Series 5/16 x 3/16 Inch (in) Barb Size Self-Sealing Check Valve

Name: PSSV Series 5/16 x 3/16 Inch (in) Barb Size Self-Sealing Check Valve
Brand: Pneuline Supply, Inc.
SKU: PSS-8290ef
Price: 49.99 USD
Availability: OutOfStock

SKU:PSS-8290ef

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our PSSV series, self-sealing check valves, are made from either polycarbonate or polypropylene housings with Barb connector sizes for 3/16 inch ID tubing or 5/16 inch ID tubing. The product is made in a class 7 clean room. The seal is a retractable silicone disk that prevents back-flow in several air and liquid applications making it an ideal option for the medical Industry for air applications including respiratory, ventilator, bio-pharmaceutical. The product can also be used with fluid applications for the medical devices. Designed for pressures under 50 PSI. All material are compatible with Gamma Sterilization 6 Mrads, and ETO Sterilization.

Product Specifications

Additional Information

Additional product materials are radiation stable polycarbonate and PVDF. Optional sealing material is EPDM with qualifying volumes. Additional barb sizes, male and female luer connections and bond-in connections can be designed and provided with quantity volumes.

Note

If you do not see exactly what you are looking for, please contact our sales department.

Technical Specs Approximate Open Pressure

0.20 psi

Technical Specs Barb Size

5/16 x 3/16 in

Technical Specs Connector Type

Barbed

Technical Specs Crack Pressure

0.001 psi

Technical Specs Flow Rate

56.29 L/h

Technical Specs Material

Polypropylene

Technical Specs Series

PSSV
