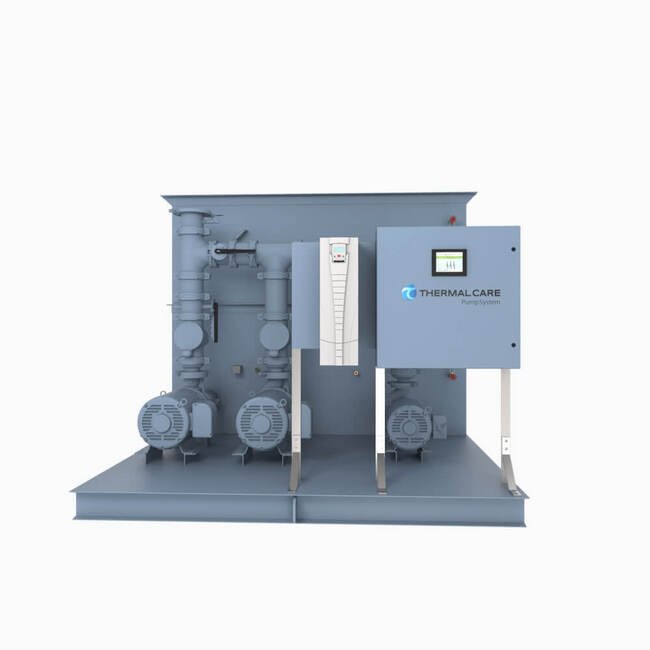

Thermal Care offers a complete line of pre-engineered tank systems for cooling tower and central chiller applications with the highest quality design and construction features available. Standard, full sized pump trim, extended pump suctions legs, welded seams and solid steel decking under pumps and a PLC are just some of the value-added features incorporated into every system. Our selection of reservoirs, pumps, controls and alarms, plus complete engineering support from system design to plant layout drawings, assure you of the correct system for your application.
Product Specifications
Additional Information
Available in fiberglass or stainless steel for indoor or outdoor installationsPLC for quick and easy operationPremium-efficiency, close-coupled, non-overloading, centrifugal pumps provide optimum flow and pressure with reduced electrical costsAll pumps are mounted on a solid deck for added rigidity, serviceability, and safetyGrooved pipe connecting system reduces the need for flexible couplings and eliminates pipe stress at start-up; connections readily disassemble for fast maintenance and reconfiguration when adding or changing pumpsFull size pump suction legs on stainless steel tanks feature a 45º angle opening to prevent vortexing and pump cavitation, which can lead to pump damage and reduced pump performanceLiquid filled pump discharge pressure gauges enable accurate flow adjustment; isolation cocks prevent gauge pressure fluctuation and extend pressure gauge lifeFactory mounted thermometer allows quick monitoring of process water temperatureDischarge check valve stops supply line flow back, eliminates the potential for water hammer at pump start-upProperly sized pump suction and discharge piping trim eliminates excessive pressure drop and maximizes flow to processPrewired and mounted control panel is hardwired to pump motors using weatherproof conduit, simplifying field installation and reducing installation costs (optional)Suction butterfly valve allows pump to be changed without draining the reservoirAutomatic water make-up assembly maintains constant water levelLow level alarm protects pumps and alerts operator to problems quicklyExternal sight glass with shutoff valvesOverflow and fill drain connectionsThermal Care offers a complete line of custom engineered pumping systems for cooling tower and central chiller applications with the highest quality design and construction features available.
Available Options
Single or dual standby pumps; available with complete connecting trim, including discharge manifold and isolation valvesFull 3/4" outdoor duty insulation including the bottom of the reservoirAutomatic standby pump switchoverVFDs for pumps and/or cooling tower fansTank coverElectronic water make-up valveTank dividerWave baffle reduces turbulenceMounted and piped heat exchangerMounted and piped strainer or bag filterRotary non-fused disconnectProgrammable logic controller (PLC)Second pump deckTank support legsOSHA approved ladder, rail and toe boar
Programmable Logic Control Plc System
An advanced PLC control systems allows for single point operation of chilling and tower systems.
Specifications Series
PT
Specifications Tank Capacity
250 to 6000 gal
Specifications Tank Type
Fiberglass | Stainless Steel
