PT1000 Thin-Film Platinum Temperature Sensor
PT1000 Thin-Film Platinum Temperature Sensor
SKU:TEM-069327
Accurate PT1000 Thin-Film Platinum Temperature Sensor for precise temperature measurements. Ideal for industrial and scientific applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PT1000 Thin-Film Platinum Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
PT1000 Thin-Film Platinum Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

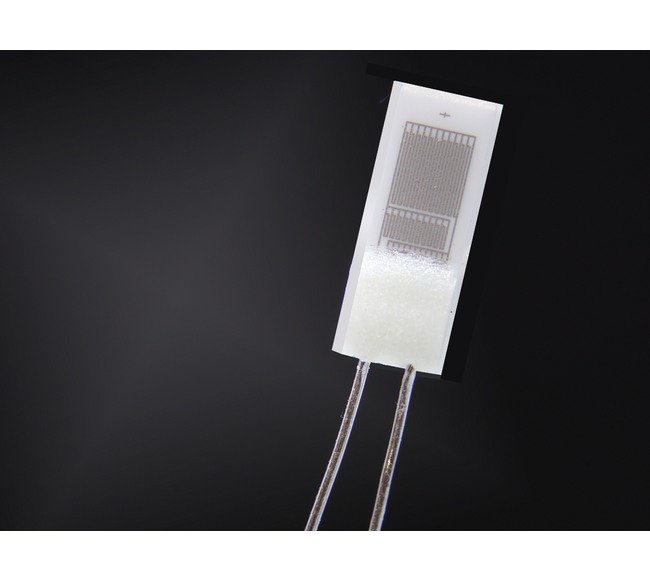

The PT1000 Thin-Film Platinum Temperature Sensor offers highly accurate temperature measurements from -200 to +600 ºC. With a resistivity of 1000 Ω, TCR of 3850 ppm/K, and IEC Class A tolerance, this sensor ensures precise and reliable performance. Manufactured by Innovative Sensor Technology, USA Division, it meets RoHS compliance and is constructed with Platinum/Nickel wire for durability. Ideal for industrial and scientific applications requiring strict temperature control.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
5.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P1K0.520.6W.A.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (Class A)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
