PTFE Low Profile L-Shaped Heater - HXFL Series
PTFE Low Profile L-Shaped Heater - HXFL Series
SKU:HEA-a7612d
Enhanced HXFL Series PTFE Heaters with 4000W power, stainless steel construction, and adjustable thermal protection. CE, CSA, UL Listed.
Regular price
$459.99
Regular price
Sale price
$459.99
Unit price
per
Initiate Order
PTFE Low Profile L-Shaped Heater - HXFL Series
$459.99
Quantity: 1
Claim Your Seller Account
PTFE Low Profile L-Shaped Heater - HXFL Series
$459.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters offer exceptional performance with a watt density of 10 W/in² | 1.5 W/cm², 4000W power, and 480V capacity. Featuring a stainless steel sheath with welded ground wire, these heaters ensure safety and durability. With options for replaceable and resettable thermal protectors, they are suitable for solutions up to 250°F (121°C). Compliance with CE, CSA, and UL Listed certifications guarantees quality and reliability. Guards recommended for specific applications. Consult factory for customized lengths and risers.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.

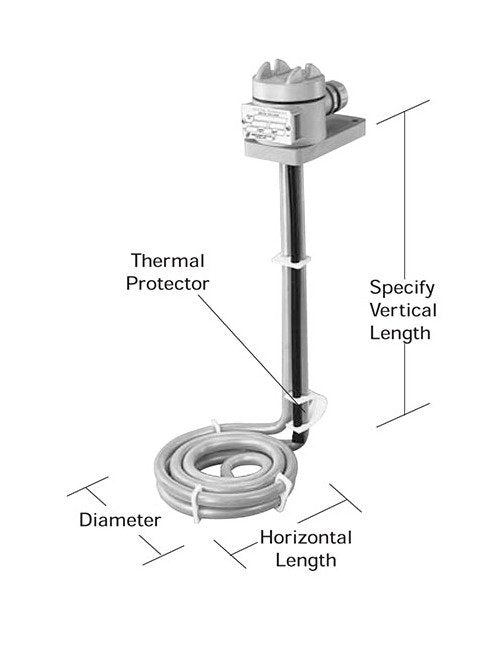

Specifications Diameter
11 " | 279 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL11-R*G
Specifications Horizontal Length
11 " | 279 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
15.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
15.0 lbs | 6.8 kg
