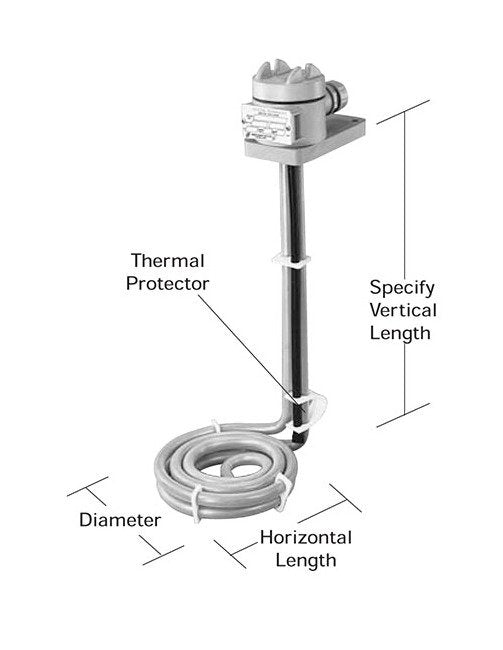

The HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters are engineered for efficient heating solutions in industrial settings. With a watt density of 10 W/in² and 3000W power output at 480V, these heaters offer reliable performance. Featuring a corrosion-resistant construction with CE, CSA, and UL certifications, they ensure safety and durability. Options for thermal overload protection up to 250°F and replaceable thermal protectors make them versatile for various applications. Guards recommended for specific solutions and environments. Consult factory for customized vertical lengths and risers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
9 " | 229 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL09-R*G
Specifications Horizontal Length
9 " | 229 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
13.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
13.0 lbs | 5.9 kg
