PTFE Low Profile L-Shaped Heaters - HXFL Series
PTFE Low Profile L-Shaped Heaters - HXFL Series
SKU:HEA-0163ee
High-performance PTFE heaters with 10 W/in² watt density, 5000W, and various thermal protection options for solutions up to 250°F. CE, CSA, UL certified.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
PTFE Low Profile L-Shaped Heaters - HXFL Series
$289.99
Quantity: 1
Claim Your Seller Account
PTFE Low Profile L-Shaped Heaters - HXFL Series
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

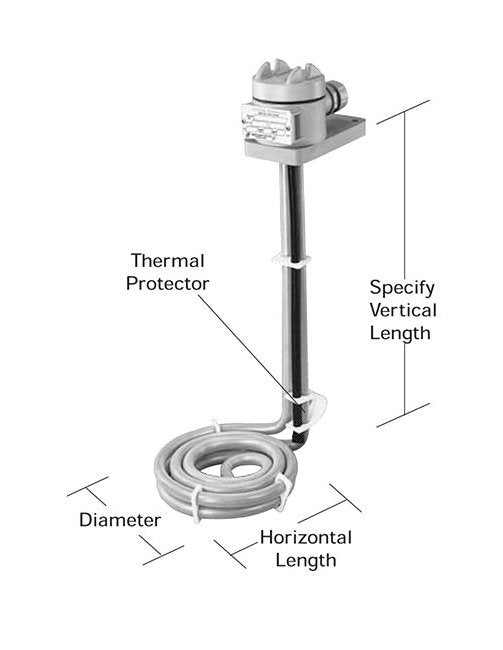

The HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters offer exceptional heating performance with a watt density of 10 W/in², ensuring efficient heat transfer. With a power output of 5000W at 240V, these heaters are designed for durability and reliability. The stainless steel sheath construction with a welded ground wire enhances safety and longevity. Available with thermal overload protection options (P1-P8), these heaters are versatile and suitable for solutions up to 250°F. Certified by CE, CSA, and UL, they meet stringent quality standards for industrial applications.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
12 " | 305 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL12-R*G
Specifications Horizontal Length
12 " | 305 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
18.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
18.0 lbs | 8.2 kg
