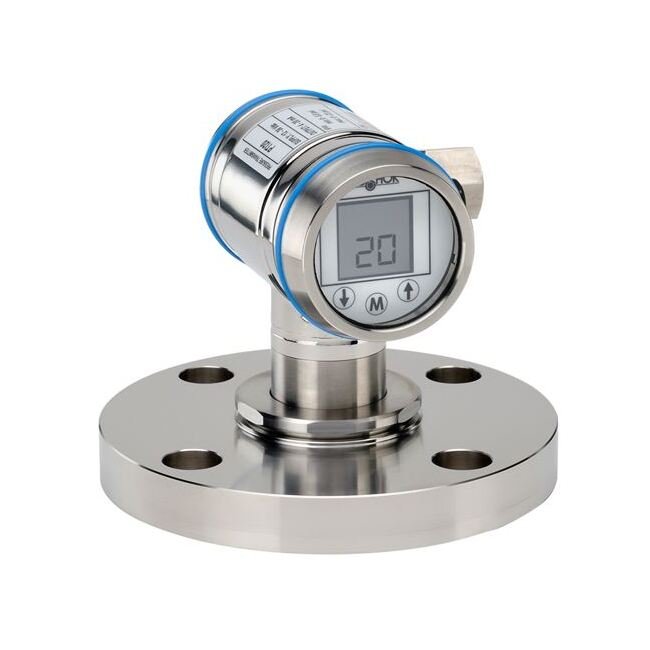

PTI20 Series Industrial Pressure Transmitter & Transducer

Name: PTI20 Series Industrial Pressure Transmitter & Transducer
Brand: Del Val Controls, Inc
SKU: NOS-04f074
Price: 599.99 USD
Availability: OutOfStock

SKU:NOS-04f074

Highly accurate PTI20 Series Pressure Transmitter for industrial applications. 14.5-58 psi range, ±0.2% accuracy, 2-wire output, durable stainless steel construction, IP66 rated.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PTI20 Series Intelligent Industrial Pressure Transmitter & Transducer is a highly accurate and reliable solution designed for a wide range of industrial applications. With a pressure range from 14.5 psi to 58 psi and an impressive accuracy of ±0.2%, this transmitter ensures precise monitoring and control. It features a 2-wire output signal, a durable 316 stainless steel construction, and an IP66 environmental rating, making it suitable for harsh environments. Additionally, the PTI20 Series offers easy adjustment via push buttons or optional HART® protocol, ensuring convenient operation and maintenance. This product meets rigorous industry standards and is ideal for applications in food & beverage, pulp & paper, water & wastewater, power generation, and general industrial settings.

Product Specifications

Additional Technical Information Adjustment

By 3 push buttons on display or optional HARTÂ® protocol

Additional Technical Information Ambient Temperature Range

-4 to 158 ÂºF | -20 to 70 ÂºC

Additional Technical Information Approximate Weight

3.3 lb

Additional Technical Information Connection Material

316 Stainless Steel

Additional Technical Information Flange Temperature Range

-4 to 212 ÂºF | -20 to 100 ÂºC

Additional Technical Information Measuring Element

316 Stainless Steel (Hastelloy C or Tantalum optional)

Additional Technical Information Response Time

<100 ms

Additional Technical Information Service Life

>10 y

Additional Technical Information Stability

<0.1%/year

Limitations Which Apply Are Limitations Which Apply Are

These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

Options And Accessories Digital Indicators

NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.

Prop 65 Warnings Prop 65 Warnings

WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
