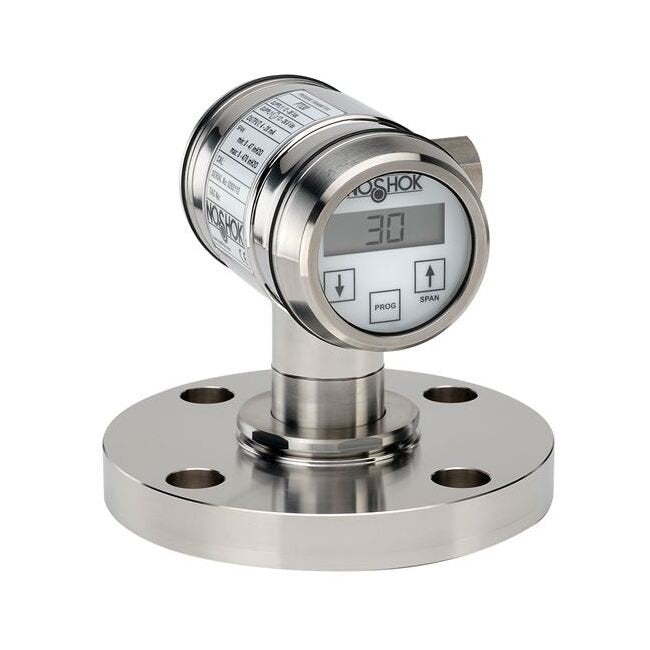

PTI30 Series High Accuracy Industrial Pressure Transmitter & Transducer
PTI30 Series High Accuracy Industrial Pressure Transmitter & Transducer
SKU:NOS-0a1287
High Accuracy Industrial Pressure Transmitter & Transducer with 290-1450 psi range, ±0.1% accuracy, 4-20mA output, ideal for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
PTI30 Series High Accuracy Industrial Pressure Transmitter & Transducer
$799.99
Quantity: 1
Claim Your Seller Account
PTI30 Series High Accuracy Industrial Pressure Transmitter & Transducer
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PTI30 Series High Accuracy Industrial Pressure Transmitter & Transducer is a cutting-edge solution for precision pressure measurement in industrial applications. With a pressure range of min. 290 psi to max. 1,450 psi, this transmitter boasts exceptional accuracy at ±0.1% of adjusted span with a 10:1 turndown ratio. It features a 4 mA to 20 mA output signal, 2" ANSI flange, and M12 x 1 4-pin electrical connection. Constructed from 316 Stainless Steel with an IP66 environmental rating, this transmitter excels in demanding environments like food & beverage, water & wastewater, and power generation. With options for digital indicators, the PTI30 Series ensures reliable and efficient pressure monitoring.
Product Specifications
Additional Technical Information Adjustment
By 3 push buttons on display or optional HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
3.3 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Flange Temperature Range
-4 to 212 ºF | -20 to 100 ºC
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C, Tantalum or Goldplated Optional)
Additional Technical Information Response Time
<250 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
2070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve | 504-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat, 0.187" Orifice Needle Valve
Specifications Accuracy
±0.1% of adjusted span with 10:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
M12 x 1 4 pin
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 290 psi, max. span 1,450 psi (lowest vacuum pressure -15 psig)
Specifications Process Connection
2" American National Standards Institute (ANSI) 150# flange
Specifications Product Series
PTI30 High Accuracy Intelligent Pressure Transmitter
