Pull Back Collet Chuck - CB-NB Series
Pull Back Collet Chuck - CB-NB Series
SKU:QUI-2edea8
Maximize machining accuracy with our Pull Back Collet Chuck - CB-NB Series. Achieve superior rigidity, tool clearance, and maintenance efficiency for optimal machining results.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Pull Back Collet Chuck - CB-NB Series
$899.99
Quantity: 1
Claim Your Seller Account
Pull Back Collet Chuck - CB-NB Series
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining precision with our Pull Back Collet Chuck from the CB-NB series. Featuring a Pull Back design for maximum clamping force efficiency, low profile OD for increased tool clearance, and radial adjusting screws for chuck assembly accuracy. Designed for durability and minimal maintenance, each component is hardened and precision-ground to ensure long-lasting performance.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

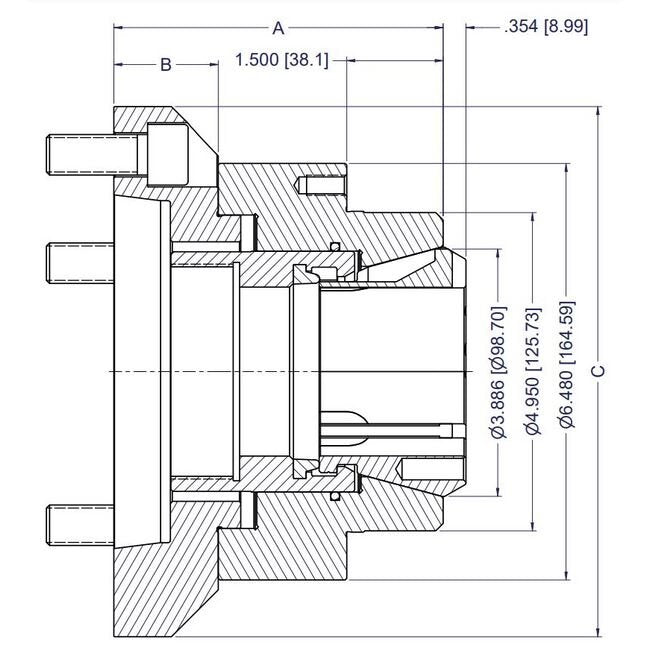

Specifications A Dimension
5.125 in | 13.18 mm
Specifications B Dimension
1.625 in | 41.28 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications C Dimension
8.25 in | 209.55 mm
Specifications Item No
15 065 303
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M85x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Weight
34.0 lb | 15.4 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
