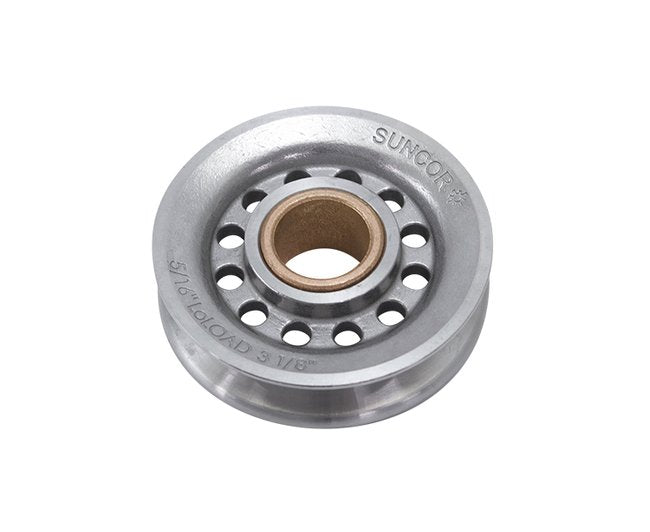

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing

Name: PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-659214
Price: 39.99 USD
Availability: OutOfStock

SKU:PUL-659214

Premium-grade PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing for high load, slow turning applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is a premium-grade component designed for optimal performance in high load, slow turning applications. Crafted from grade 316 stainless steel and lead-free oil impregnated bronze, this sheave ensures maximum corrosion resistance, durability, and reduced friction. With a thick-walled bronze bushing to support side load wear, this versatile and robust sheave offers long-lasting reliability. Tailor-made for specific project applications, the PullPro™ sheave guarantees optimal weight distribution, groove diameter, and throat angle for enhanced efficiency and safety.

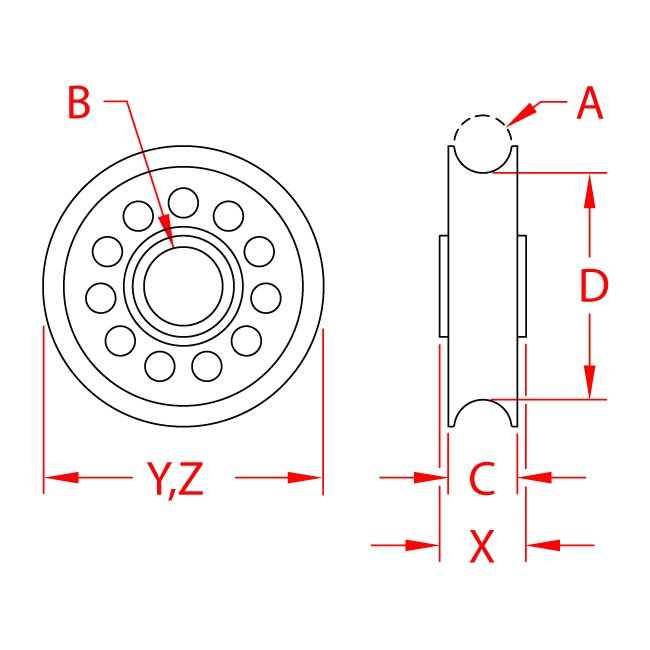

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

Specifications Bushing Material

Bronze

Specifications Dimension B

0.50 in

Specifications Dimension C

0.63 in

Specifications Dimension D

2.05 in

Specifications Dimension X

0.71 in

Specifications Dimension Y

2.50 in

Specifications Dimension Z

2.50 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Rope

Specifications Rope Size A

1/2 in

Specifications Spacer Part

S0429-131618

Specifications Weight

0.47 (lb)

Specifications Working Load Limit Wll

1500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing
