PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing

Name: PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-2b831d
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-2b831d

Premium 316 Stainless Steel/Bronze Rope Sheave Bushing for high-load, slow turning applications. Versatile, durable, and corrosion-resistant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

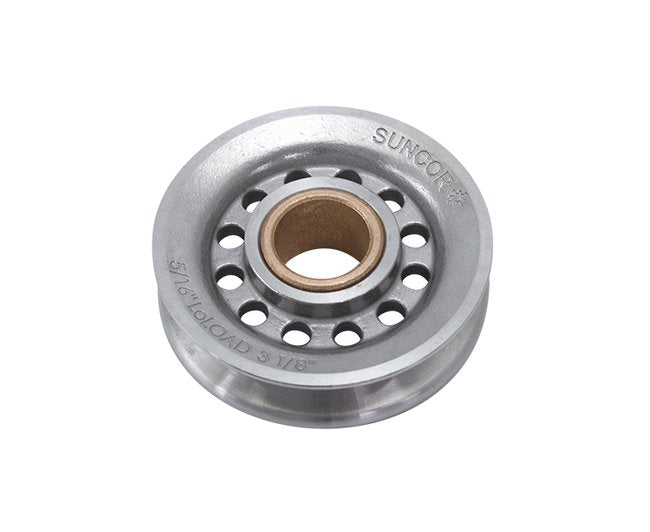

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is a premium and durable sheave designed for a wide range of applications. Made from grade 316 stainless steel for superior corrosion resistance and longevity, with a lead-free oil-impregnated bronze bushing for high load capacity in slow-turning scenarios. The thick-walled bushing reduces friction and supports side loads, ensuring optimal performance and safety. Choose from various sizes and hub styles tailored to specific applications, providing reliable operation and longevity.

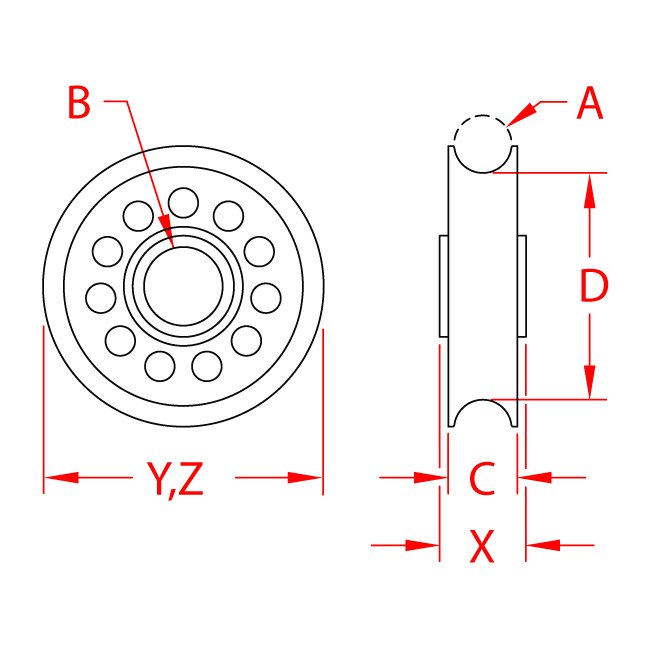

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

Specifications Bushing Material

Bronze

Specifications Dimension B

0.88 in

Specifications Dimension C

0.92 in

Specifications Dimension D

3.02 in

Specifications Dimension X

1.02 in

Specifications Dimension Y

3.75 in

Specifications Dimension Z

3.75 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Rope

Specifications Rope Size A

3/4 in

Specifications Spacer Part

S0429-222825

Specifications Weight

1.13 (lb)

Specifications Working Load Limit Wll

4500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
