PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing for Heavy-Duty Applications

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing for Heavy-Duty Applications

SKU:PUL-8cedf3

Premium PullPro™ Stainless Steel/Bronze Rope Sheave for heavy-duty projects. Corrosion-resistant, durable, and versatile.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing for Heavy-Duty Applications

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing for Heavy-Duty Applications

$79.99

Quantity: 1

Claim Your Seller Account

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing for Heavy-Duty Applications

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing for Heavy-Duty Applications

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is designed for heavy-duty applications, offering superior corrosion resistance and durability. Made from grade 316 stainless steel and lead-free oil-impregnated bronze bushing, it can accommodate rope sizes from 3/8" to 1". With a thick-walled bushing for high load and slow-turning applications, this sheave minimizes friction and side load wear. The PullPro™ premium stainless steel sheave ensures safety, longevity, and precise fit, with various sizes and hub styles available to cater to specific project needs.

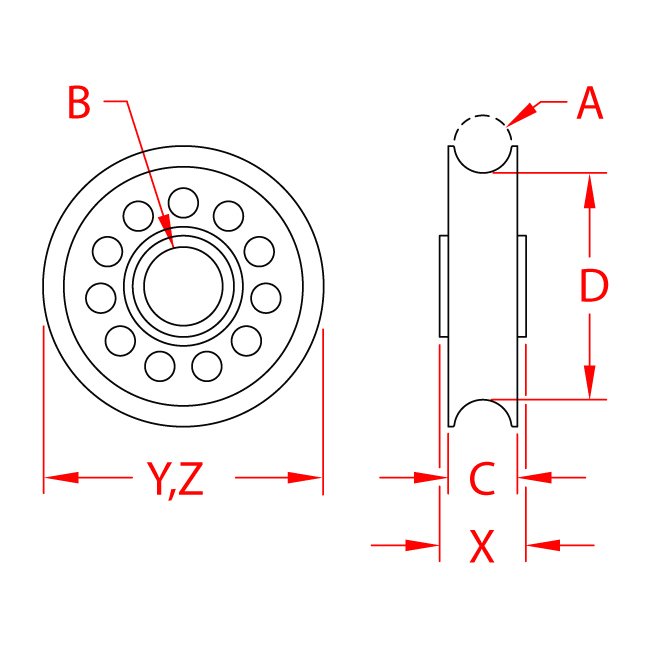

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze
Specifications Dimension B
0.88 in
Specifications Dimension C
1.26 in
Specifications Dimension D
4.00 in
Specifications Dimension X
1.40 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
5.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Rope
Specifications Rope Size A
1 in
Specifications Spacer Part
S0429-223135
Specifications Weight
2.84 (lb)
Specifications Working Load Limit Wll
5500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
