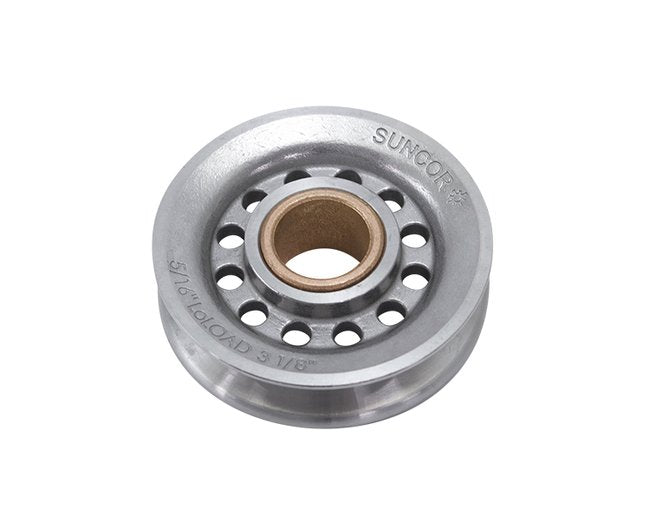

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Grade 316 Stainless Steel

Name: PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Grade 316 Stainless Steel
Brand: Suncor Stainless, Inc.
SKU: PUL-144663
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-144663

Premium PullPro™ 316 Stainless Steel/Bronze Sheave Bushing for high-load projects, grade 316 stainless steel construction.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is a premium choice for projects requiring high load capacity and slow turning applications. Crafted from grade 316 stainless steel for superior corrosion resistance and durability, this sheave features a lead-free oil impregnated bronze bushing with a thick wall to support side load wear and reduce friction. With a working load limit of 1000 lb and compatibility with rope sizes from 3/8" to 7/16", the PullPro™ sheave offers versatility, robustness, and longevity, making it a reliable solution for various applications.

Product Specifications

Note

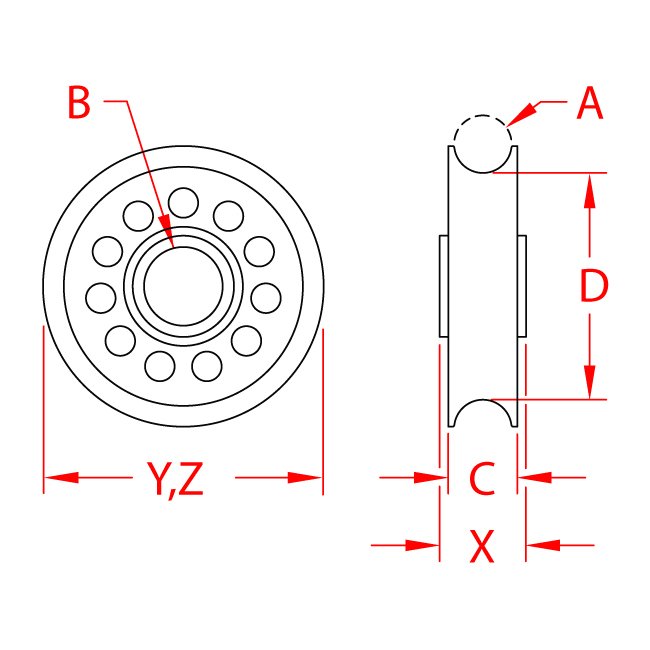

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

Specifications Bushing Material

Bronze

Specifications Dimension B

0.25 in

Specifications Dimension C

0.51 in

Specifications Dimension D

1.65 in

Specifications Dimension X

0.59 in

Specifications Dimension Y

2.00 in

Specifications Dimension Z

2.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Rope

Specifications Rope Size A

3/8 to 7/16 in

Specifications Spacer Part

S0429-071015

Specifications Weight

0.23 (lb)

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Grade 316 Stainless Steel
