PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

SKU:PUL-61739c

Premium PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - corrosion-resistant, durable, and versatile.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

$59.99

Quantity: 1

Claim Your Seller Account

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

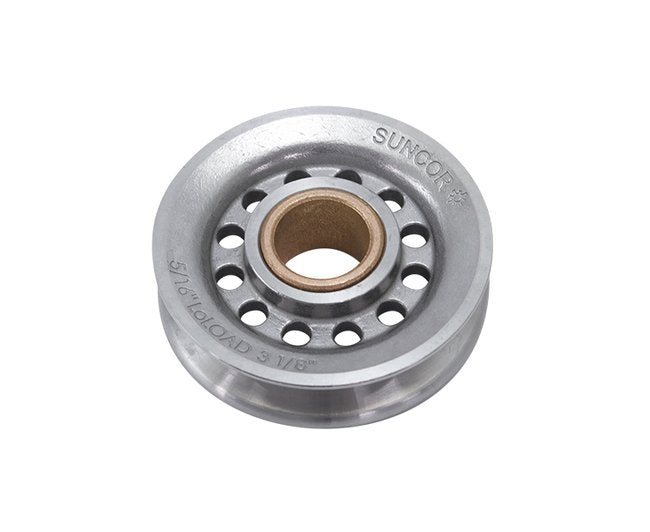

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is engineered for precision and reliability in industrial and construction applications. Crafted from high-grade 316 stainless steel with a lead-free oil impregnated bronze bushing, this sheave ensures superior corrosion resistance and durability. Its thick-walled bushing supports heavy loads and minimizes friction, while the variety of sizes and hub styles provide a tailored solution for a wide range of projects. With a working load limit of 3000 lb and compliance with stringent industry standards, the PullPro™ sheave guarantees safety, longevity, and optimal performance.

Product Specifications

Note

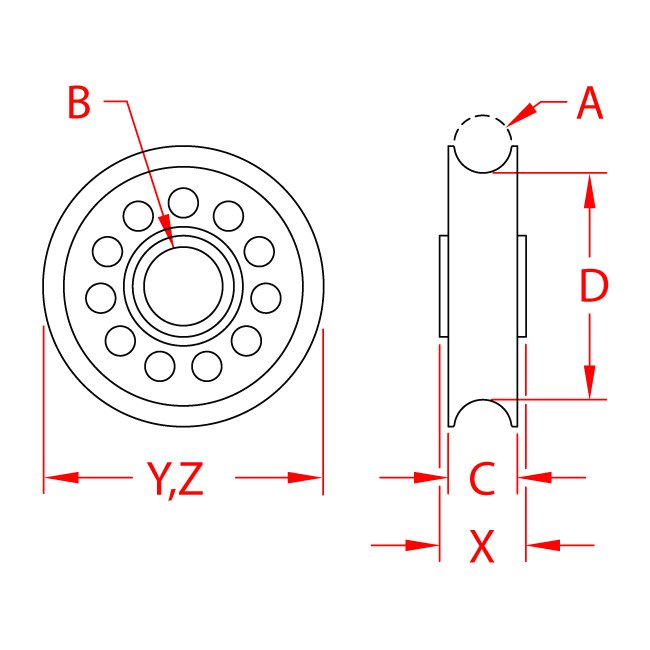

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze
Specifications Dimension B
0.75 in
Specifications Dimension C
0.77 in
Specifications Dimension D
2.53 in
Specifications Dimension X
0.86 in
Specifications Dimension Y
3.13 in
Specifications Dimension Z
3.13 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Rope
Specifications Rope Size A
5/8 in
Specifications Spacer Part
S0429-202222
Specifications Weight
0.67 (lb)
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
